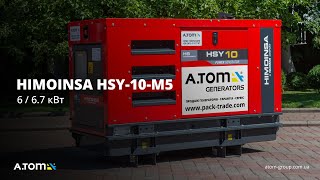

HIMOINSA HSY-10-M5 6.7 kW

Name: HIMOINSA HSY-10-M5 6.7 kW
Brand: himoinsa
SKU: 10152
Price: 8250 EUR
Availability: InStock

Order in advance

363,660 UAH 8,250 €

Order

Expected on stock: 0 pc

Warehouse

Brand: HIMOINSA (Spain)

Description:

Diesel generator HIMOINSA HSY-10-M5 6.7 kW. The maximum power is 6,7 kW. Fuel consumption at 100% loaded 2,31 l/h. The volume of the fuel tank is 100 liters

Cash payments

Card payments

Download Catalogs

Key features HIMOINSA HSY-10-M5 6.7 kW

Condition	New
Model	HSY-10
Maximum power (kVA)	8.4
Rated power (kVA)	7.5
Maximum power (kW)	6.7
Rated power (kW)	6
Fuel consumption at 100% loaded (l/h)	2.31
Fuel tank volume (l)	100
Width (mm)	750
Height (mm)	1270
Length (mm)	1725
Weight (kg)	540
Engine	YANMAR 3TNV76HSPU
Alternator	STAMFORD S0L1.P1
Control panel	M7X
Rated power range (kW)	5-20

More information

TECHNICAL SPECIFICATIONS OF HIMOINSA HSY-10-M5

SERVICE (MECC ALTE)	PRP	ESP
Power	8,1 kVA	9,1 kVA
Power	6,5 kW	7,3 kW
Rated Speed	1500 r.p.m.
Main Voltage	230 V
Available voltages	240/120 V (t)
Rated at power factor	0,8 Cos Phi

SERVICE (STAMFORD)	PRP	ESP
Power	7,5 kVA	8,4 kVA
Power	6 kW	6,7 kW
Rated Speed	1500 r.p.m.
Main Voltage	230 V
Available voltages	240/120 V (t)
Rated at power factor	0,8 Cos Phi

ENGINE SPECIFICATIONS
Rated Engine Output (PRM)	8,2 kW
Rated Engine Output (ESP)	9,3 kW
Manufacturer	YANMAR
Model	3TNV76HSPU
Engine Type	4-stroke diesel
Injection Type	Indirect
Aspiration Type	Natural
Number of cylinders and arrangement	3-L
Bore and Stroke	76 x 82 mm
Displacement	1,116 L
Cooling System	Coolant
Lube Oil Specifications	SAE 3 class 10W30 / API grade CD,CF
Compression Ratio	23,5:1
Lube oil consumption with full load	0,27
Total oil capacity	3,5 L
Total coolant capacity	3,7 L
Governor (Type)	Mechanical
Air Filter (Type)	Dry
Inner diameter exhaust pipe	40 mm

GENERATOR SPECIFICATIONS	MECC ALTE
Manufacturer	MECC ALTE
Model	ECP28.2S4C
Poles	4 No.
Connection type (standard)	Double delta
Mounting type	S-4 7,5
Insulation	H class
Enclosure (according IEC-34-5)	IP23
Exciter system	Self-excited, brushless
Voltage regulator	A.V.R. (Electronic)
Bracket type	Single bearing
Coupling system	Flexible disc
Coating type	Standard (Vacuum impregnation)

GENERATOR SPECIFICATIONS	STAMFORD
Manufacturer	STAMFORD
Model	S0L1.P1
Poles	4 No.
Connection type (standard)	Double delta
Mounting type	S-5 7"1/2
Insulation	H class
Enclosure (according IEC-34-5)	IP23
Exciter system	Self-excited, brushless
Voltage regulator	A.V.R. (Electronic)
Bracket type	Single bearing
Coupling system	Flexible disc
Coating type	Standard (Vacuum impregnation)

WEIGHT AND DIMENSIONS
Length	1730 mm
Height	1270 mm
Width	750 mm
Weight with liquids in radiator and sump	540 kg
Fuel tank capacity	100 L
Autonomy (70% PRP)	54 Hours
Autonomy (100% PRP)	33 Hours
Tank	Steel tank

SOUND PRESSURE
Sound pressure level	59 ± 2,4 dB(A)@7m
Sound pressure level with attenuation system	55 ± 2,4 dB(A)@7m

FUEL CONSUMPTION
Fuel Consumption ESP	3 l/h
Fuel Consumption 70 % ESP	1,84 l/h

FUEL SYSTEM
Fuel Oil Specifications	Diesel
Fuel Tank	100 L
