Number: 10091

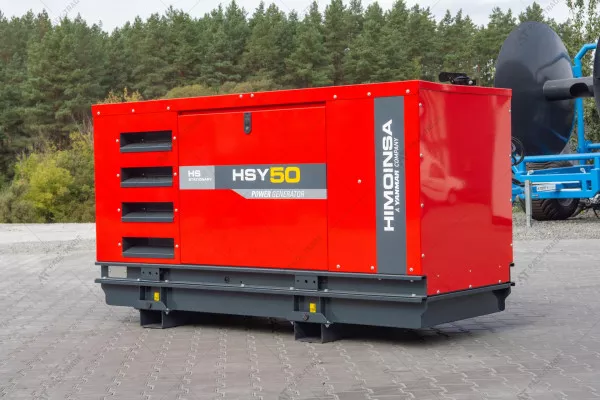

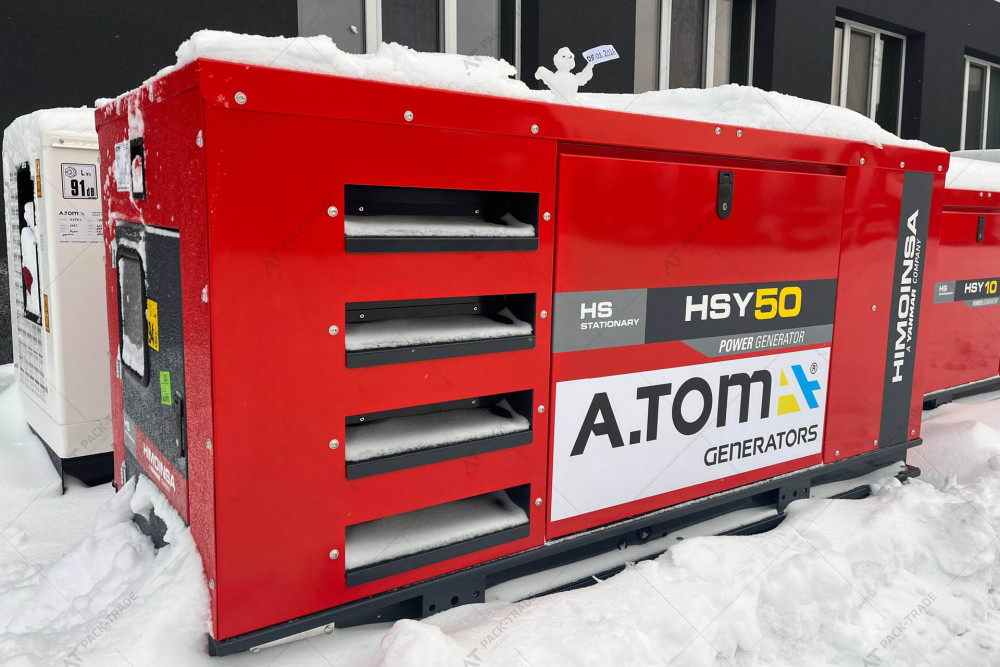

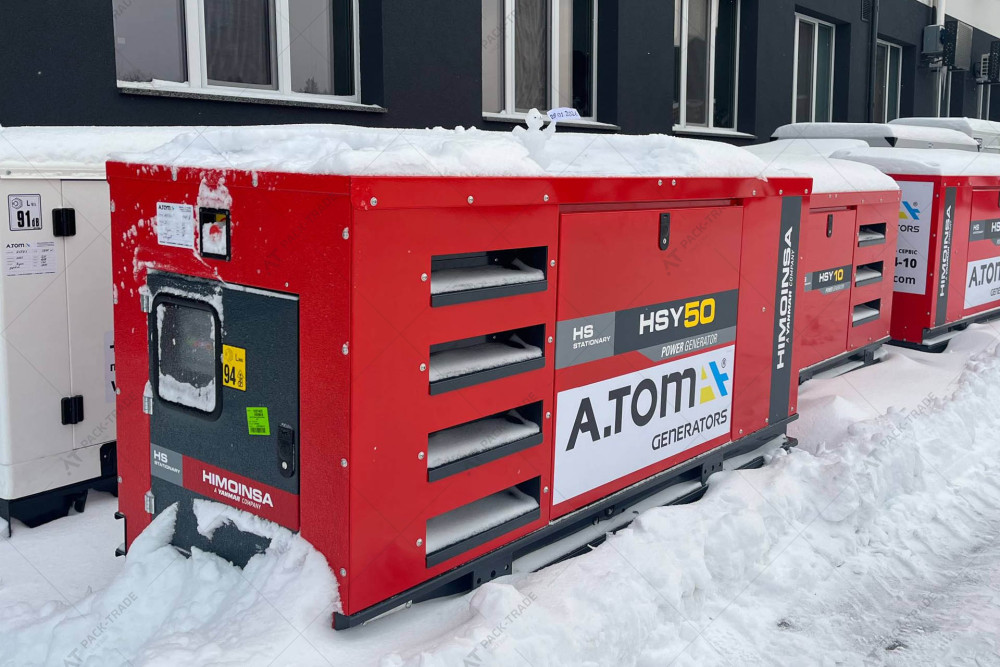

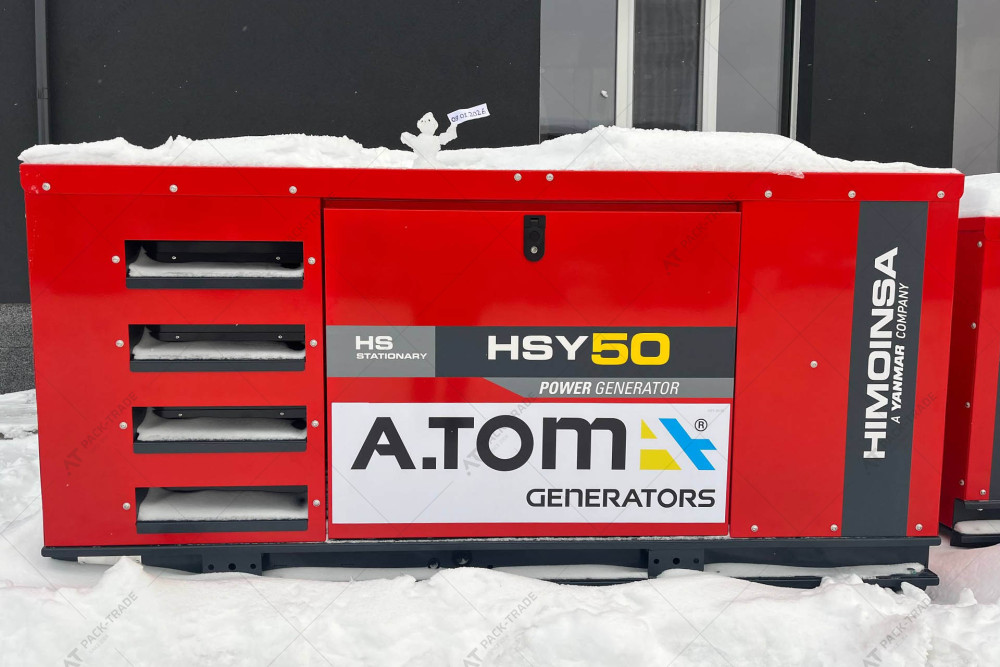

HIMOINSA HSY-50 T5 40/33 kW

Name: HIMOINSA HSY-50 T5 40/33 kW
Brand: himoinsa
SKU: 10091
Price: 10750 EUR
Availability: InStock

Order in advance

473,860 UAH 10,750 €

Order

Expected on stock: 0 pc

Warehouse

Brand: HIMOINSA (Spain)

Description:

HIMOINSA HSY-50 T5 40/33 kW. The maximum power is 40 kW. Fuel consumption at 100% loaded 9,16 l/h. The volume of the fuel tank is 170 liters

Cash payments

Card payments

Download Catalogs

Key features HIMOINSA HSY-50 T5 40/33 kW

Model	HSY-50
Maximum power (kVA)	50
Rated power (kVA)	42
Maximum power (kW)	40
Rated power (kW)	33
Width (mm)	910
Height (mm)	1350
Length (mm)	2200
Weight (kg)	890
Fuel tank volume (l)	170
Fuel consumption at 100% loaded (l/h)	9.16
Rated power range (kW)	21-40

More information

TECHNICAL SPECIFICATIONS OF HIMOINSA HSY-50 T5

ENGINE SPECIFICATIONS
Rated Engine Output (PRM)	37,7 kW
Rated Engine Output (ESP)	45,5 kW
Manufacturer	YANMAR
Model	4TNV98THSPU
Engine Type	4-stroke diesel
Injection Type	Direct
Aspiration Type	Turbocharged
Number of cylinders and arrangement	4-L
Bore and Stroke	98 x 110 mm
Displacement	3,319 L
Cooling System	Coolant
Lube Oil Specifications	SAE 3 class 10W30 / API grade CD,CF
Compression Ratio	18,1:1
Lube oil consumption with full load	0,27
Total oil capacity	10,5 L
Total coolant capacity	9 L
Governor (Type)	Mechanical
Air Filter (Type)	Dry
Inner diameter exhaust pipe	45 mm

GENERATOR SPECIFICATIONS	MECC ALTE
Manufacturer	MECC ALTE
Model	ECP32.2S4C
Poles	4 No.
Connection type (standard)	Star-series
Mounting type	S-3 11"1/2
Insulation	H class
Enclosure (according IEC-34-5)	IP23
Exciter system	Self-excited, brushless
Voltage regulator	A.V.R. (Electronic)
Bracket type	Single bearing
Coupling system	Flexible disc
Coating type	Standard (Vacuum impregnation)

GENERATOR SPECIFICATIONS	STAMFORD
Manufacturer	STAMFORD
Model	S1L2.N1
Poles	4 No.
Connection type (standard)	Star-series
Mounting type	S-3 11"1/2
Insulation	H class
Enclosure (according IEC-34-5)	IP23
Exciter system	Self-excited, brushless
Voltage regulator	A.V.R. (Electronic)
Bracket type	Single bearing
Coupling system	Flexible disc
Coating type	Standard (Vacuum impregnation)

WEIGHT AND DIMENSIONS
Length	2200 mm
Height	1350 mm
Width	910 mm
Weight with liquids in radiator and sump	890 kg
Fuel tank capacity	170 L
Autonomy (70% PRP)	22 Hours
Autonomy (100% PRP)	16 Hours
Tank	Steel tank

SOUND PRESSURE
Sound pressure level	66 ± 2,4 dB(A)@7m
Sound pressure level with attenuation system	63 ± 2,4 dB(A)@7m
