JORDAIN Telescopic barrier 5 BARS

Name: JORDAIN Telescopic barrier 5 BARS
Brand: jordain
SKU: 15153
Availability: InStock

Order in advance

Price on application

Order

Brand: JORDAIN (France)

Description:

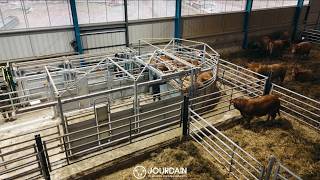

JORDAIN Telescopic barrier 5 BARS made of Ø 60 mm pipes. Sliding part made of Ø 49 mm pipes. Spacers Ø 49 mm are connected in a curved groove “wolf's mouth”, 5 bolt connections, bolt with eye Ø 22 mm and 3 nuts.joints, Ø 22 mm eye bolt and 3 nuts on a through steel ring. The height can be adjusted by simply turning it upside down. On feedlots we recommend the use of EX 5 partitions and AUTOLOCK doors up to 4 m wide.

Cash payments

Card payments

More information

AUTOLOCK GATE EX 5
Catalog number	Name of part	Weight
BA1950	Gate AUTOLOCK EX 5 1/2 m	53 kg
BA1951	Gate AUTOLOCK EX 5 2/3 m	73 kg
BA1952	Gate AUTOLOCK EX 5 3/4 m	93 kg
BA1953	Gate AUTOLOCK EX 5 4/5 m	115 kg
BA1954	Gate AUTOLOCK EX 5 5/6 m	136 kg
BA1955	Gate AUTOLOCK EX 5 6/7 m	158 kg

PANEL EX 5
Catalog number	Name of part	Weight
BA2000	Panel EX 5 1/2 m	48 kg
BA2001	Panel EX 5 2/3 m	67 kg
BA2002	Panel EX 5 3/4 m	87 kg
BA2003	Panel EX 5 4/5 m	110 kg
BA2004	Panel EX 5 5/6 m	130 kg
BA2005	Panel EX 5 6/7 m	152 kg

* In the case of AUTOLOCK 5/6 m and 6/7 m doors, a rod should be installed to support the partition to ensure better operation.

BACK EX 5
Catalog number	Name of part	Weight
BA5011	Back EX 5 1/2 m (71 cm axis/pin) - (Pack x 6)	18 kg
BA9971	Back EX 5 2/3 m (1.61 m axis/pin) - (Pack x 12)	38 kg
BA9972	Back EX 5 3/4 m (2.61 m axis/pin) - (Pack x 12)	58 kg
BA9973	Back EX 5 4/5 m (3.61 m axis/pin) - (Pack x 12)	80 kg
BA9974	Back EX 5 5/6 m (4.61 m axis/pin) - (Pack x 12)	101 kg
BA9975	Back EX 5 6/7 m (5.61 m axis/pin) - (Pack x 6)	123 kg

BACK EX 5 “VET 3 IN 1”
Catalog number	Name of part	Weight
BA5049	BACK EX 5 “VET 3 IN 1”	93,6 kg

Partition for treatment pen with an insemination headlock, and opening upper section for Caesareans with an EX 5 back.
From 3.41 to 4.60 m (centre/post centre).

DOUBLEX EX 5
Catalog number	Name of part	Weight
BD0501	Doublex EX 5 L. 90 cm - ( Pack x 12)	22 kg
BD0502	Doublex EX 5 L.1.90 m - (Pack x 12)	47 kg
BD0502	Doublex EX 5 L. 2.90 m - (Pack x 12)	71 kg

Female central section enabling a male section from the list of EX 5 options to be inserted at either end.

FRONT EX 5
Catalog number	Name of part	Weight
BA5055	Front gate AUTOLOCK EX 5 (1.65 m) - (Pack x 12)	35 kg
BA9970	Front panel EX 5 (1.71 m) - (Pack x 12)	30 kg

EXTENDED EX 5
Catalog number	Name of part	Weight
BA5065	Front gate AUTOLOCK EX 5 long L. 2.54 m	41 kg
BA5023	Front panel EX 5 long L. 2.54 m	42 kg
