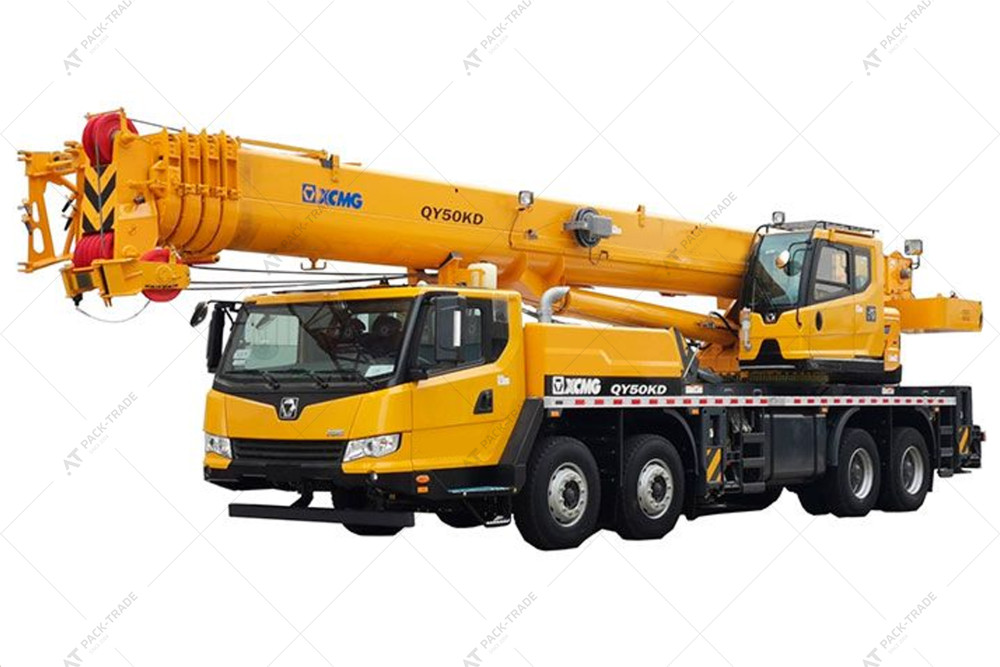

XCMG QY50KD truck crane

Name: XCMG QY50KD truck crane
Brand: xcmg
SKU: 16411
Availability: InStock

Order in advance

Price on application

Order

Brand: XCMG

Description:

XCMG QY50KD truck crane is a model with a lifting capacity of 50 tons. The 19.4 m boom combined with a 10 m amplitude provides high accuracy of work performance. The 10-liter 380 hp engine provides confident work on any construction site. K-series hydraulics and twin pump system — for maximum productivity and reliable control.

Cash payments

Card payments

More information

Technical characteristics XCMG QY50KD
Load capacity, t	50
Maximum load moment, kN*m	2009
Boom	5-section, U-shaped
Maximum lifting height (with “Gooseneck”), m	58.1
Maximum lifting height (without ‘Gooseneck’), m	44
Length of main boom, m	11,4-43,5 (59,5)
Overall dimensions (DxWxH), mm	14030×2800×3630
“Gooseneck” length, m	9.5-16
Tilt angle, deg.	0, 15, 30
Outrigger base, m	7.1 (4.7)
Distance between outriggers, m	6.1
Maximum slewing speed, rpm	≥2,0
Base chassis	available
XCMG chassis	available
Wheel arrangement	8х4
GVW, kg	42200
GVW distribution to the front axle, kg	16200
GVW distribution to the rear axle, kg	26000
Engine	D10.38-50V
Environmental standard	EURO 5
Engine power, kW (rpm)	274/2000
Torque, Nm/rpm	1560/1200-1500
Ground clearance, mm	327
Maximum speed, km/h	80
Maximum inclination angle, %	45
Fuel consumption per 100 km, l	40
Minimum working radius, mm	3000

Advantages of XCMG QY50KD truck cranes:

Safety
Remote control of the position of working elements, as well as the limiter of load torque, lifting capacity and free rope travel - make the special equipment safe even in the most extreme conditions.
Stability
Hydraulic supports, placing the center of gravity at the lowest point and controlling the evenness of the load on the boom - give the equipment maximum stability during lifting and moving the load.
Maneuverability
High maneuverability of XCMG highway truck cranes is provided by swivel rear and front wheel axles. In addition, there is an innovative automatic load leveling system.
Reliability
Highway cranes from China are made of low-alloy Swedish steel. The boom profile has a hexagonal shape. Thanks to this technique evenly distributes loads, is strong and durable.
Comfort
On-board computer, joystick control, cabin with panoramic glazing and metal protection, windshield wipers, side-sliding door, ergonomic chair with headrest and sprung mechanism - facilitate the process of controlling special equipment and reduce fatigue of the crane operator.
Versatility
Chinese truck cranes XCMG are equipped with climate control. They have a powerful engine and well-developed design of pneumatic chassis. This makes it possible to use the equipment at any temperature and on any roads (unpaved, highway, off-road)
