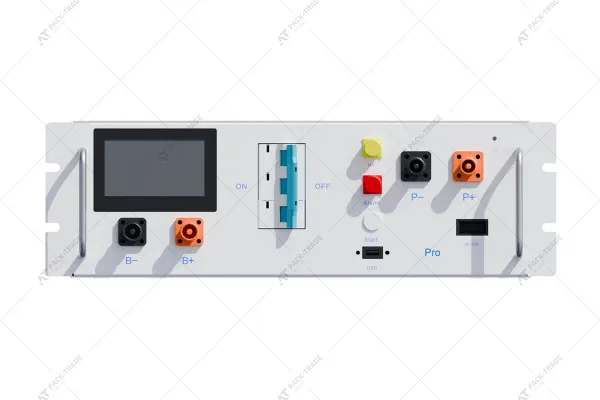

Deye BOS-G-PDU-2 Control Unit

Description:

Deye BOS-G-PDU-2 is a control and monitoring module that allows you to connect between 5 and 17 BOS-G-Pack5.1 PRO battery packs. The maximum capacity of a single cluster consisting of 17 BOS-G-Pack5.1 PRO packs is 87 kWh. This controller provides battery monitoring, protection, and balancing, supporting an operating voltage range of 200–1000 V and a nominal charge/discharge current of 100 A. Communication interfaces: CAN 2.0 and RS485 for integration with Deye inverters and other system components. Compatible with 3U-HRack and 3U-LRACK racks. The BOS-G-Pack5.1 PRO can be used in conjunction with the BOS-GM5.1 under certain conditions.
