| Model | LR8-66HGD-615M |
| Maximum power (W) | 615 |
| Coefficient of performance (%) | 22.8 |

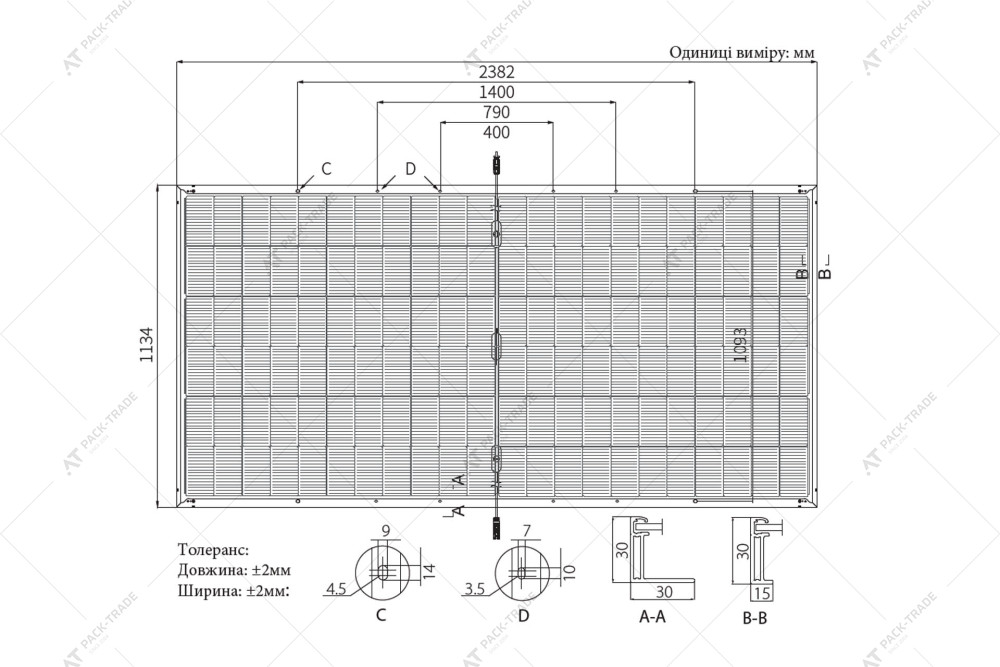

| Overall dimensions (LxWxH) (mm) | 2382×1134×30 |
| Weight (kg) | 33.5 |
| Cell type | TNC (single crystal N-type cell) |
| Unloaded voltage (V) | 48.58 |
| Maximum working voltage (V) | 40.71 |
| Short-circuit current (A) | 16 |
| Maximum working current (A) | 15.11 |
| Distribution box | IP68 (protection against moisture and dust) |
| Working temperature (℃) | -40℃ to +85℃ |
| Maximum system voltage (V) | 1500 |
| Maximum fuse current (A) | 35 |
Delivery by company transport or carrier.
For more than 20 years, we have become reliable partners, well-known manufacturers, and professionals.
