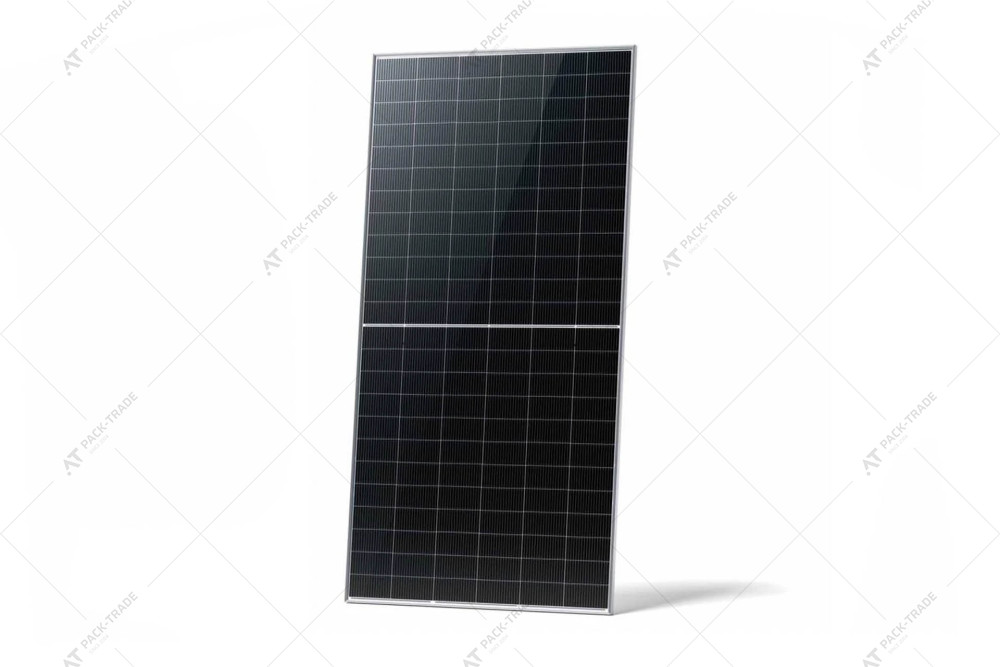

| Model | JKM580N-72HL4-BDV |
| Maximum power (W) | 580 |
| Coefficient of performance (%) | 22.45 |

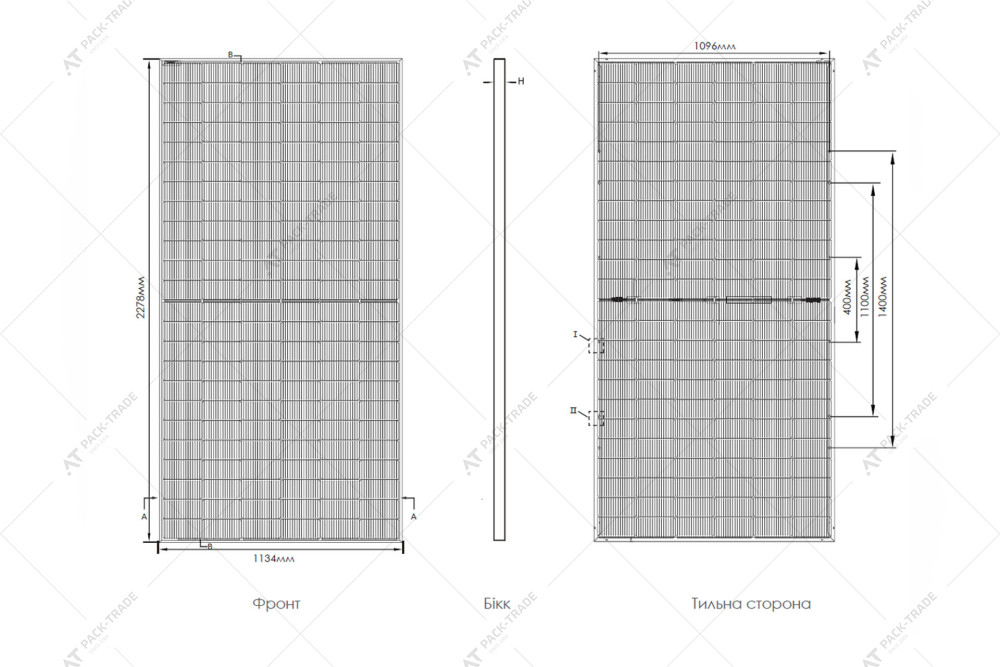

| Overall dimensions (LxWxH) (mm) | 2278×1134×30 |
| Weight (kg) | 32 |
| Cell type | TNC (single crystal N-type cell) |
| Unloaded voltage (V) | 51.47 |
| Maximum working voltage (V) | 42.59 |
| Short-circuit current (A) | 14.37 |
| Maximum working current (A) | 13.62 |
| Distribution box | IP68 (protection against moisture and dust) |
| Working temperature (℃) | -40℃ to +85℃ |
| Maximum system voltage (V) | 1500 |
| Maximum fuse current (A) | 30 |
