Manure (slurry) A.TOM 9DS INJECTOR

Name: Manure (slurry) A.TOM 9DS INJECTOR
Brand: a_tom
SKU: 10734
Price: 59000 EUR
Availability: InStock

Order in advance

Bestseller

Price with VAT

3,082,159 UAH 59,000 €

Order

Expected on stock: 0 pc

Warehouse

Brand: A.TOM (Ukraine)

Description:

Manure (slurry) A.TOM 9DS INJECTOR is towed equipment designated for applying liquid organic fertilizers. It is used at the final stage of disposal of the slurry or biogas digestate from the biogas unit using the technology of hose systems, in which the applied material is pumped from the storage site to fields by pump-diesel stations using lay-flat hoses from which the last 400 meters are connected to the cultivator attached to tractor. According to the type of application this cultivator is classified as subsoil application equipment.

Cash payments

Card payments

Key features Manure (slurry) A.TOM 9DS INJECTOR

Number of working tools	9
The distance between the working tools (cm)	78
Total width (m)	4.94
Application depth (cm)	15
Required power on 1 work. tool (h.p.)	25
Intake pipe diameter (mm)	152
Working bodies diameter (mm)	70
Working body	DIETRICH SLURRY INJECTOR
Working width (m)	6,5
Total height (mm)	2900
Weight (kg)	2200

VideoManure (slurry) A.TOM 9DS INJECTOR

FeaturesManure (slurry) A.TOM 9DS INJECTOR

Auto reset to working position

1-1 / 4 "Х 2" 5160 alloy steel slurry injector

22 1/2 diameter coulter

Cast steel Chisel Point Sweeps

Wing drop 3 in

Separately replaceable sweeps and tubes

Liquid flow distributor with forced control "Vogelsang"

More information

Manure (slurry) A.TOM 9DS INJECTOR

1. Robust design

The operating conditions of the manure applicator require sufficient durability and robust design. Equipment is made of high-quality S355 J2 structural steel and powder polymer coating as it works in an aggressive environment.

2. Folding frame

The folding frame provides mobility and convenience during transportation. The cross-section of the bar is 150 mm x 100 mm, and the thickness is 8 mm.

3. Stabilizing supports

Metal stabilizing supports, which are folded and unfolded, are fixed vertically with a lock pin in the unfolded position. They raise the applicator and keep it at a certain height for aggregation with the tractor. After the end of work, they fix the applicator in a stable position.

4. Type of aggregation with a tractor

The applicator is aggregated with tractors of the third and fourth category using a three-point hitch.

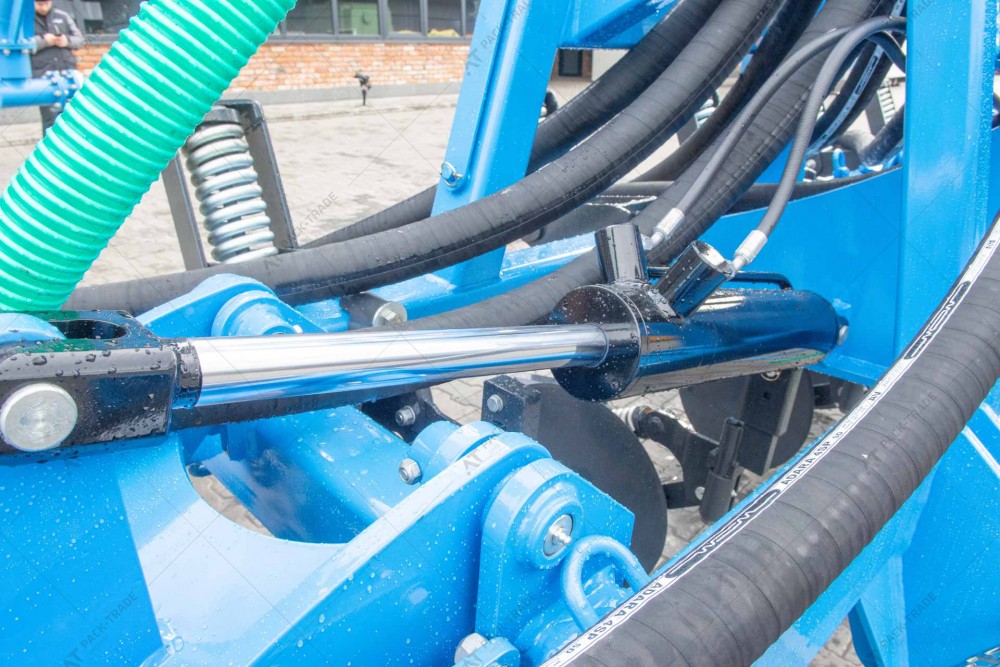

5. Heavy-duty hydraulic cylinders

Heavy-duty hydraulic cylinders with a strong rod are used for folding and unfolding the frame.

6. Turning pipe

A robust 152 mm reinforced swivel pipe, rotates around a vertical axis.

7. Rubber limiter of the rotary pipe

8. Double swivel mechanism

The unique element of the applicator is a swing pipe with a double swivel mechanism. The device protects the towed hose and prevents the twisting of the hose with liquid under pressure.

9. Grease zerks

For periodic greasing of oil seals and bearings in the applicator. We recommend using SAE universal grease with extreme properties (EP), Nils Nilex EP 2 plastic grease (Italy).

10. Hydraulic hoses "Hansa-Flex" (Germany)

Most functions of the injector applicator depend on the quality of the hydraulic system. Reliable and proven hoses from the leading European manufacturer are the best solutions for efficient operation.

11. Liquid flow distributor with forced control "Vogelsang" (Germany)

The distribution of manure between the working tools is carried out through a liquid flow distributor with 7 outlets with a diameter of 75 mm. Pressure hoses are connected and fastened to the outlets with stainless steel clamps. The distributor is powered by a hydraulic motor.

12. Pressure distribution hoses "ADARA"

From the flow distributor, the liquid is delivered to the working tools through distribution hoses with a diameter of 75 mm, designed for a pressure of up to 10 Bar. We use "Adara" pressure distribution hoses from one of the best European hose manufacturers –“BrinkoflexGmbh” (Germany).
