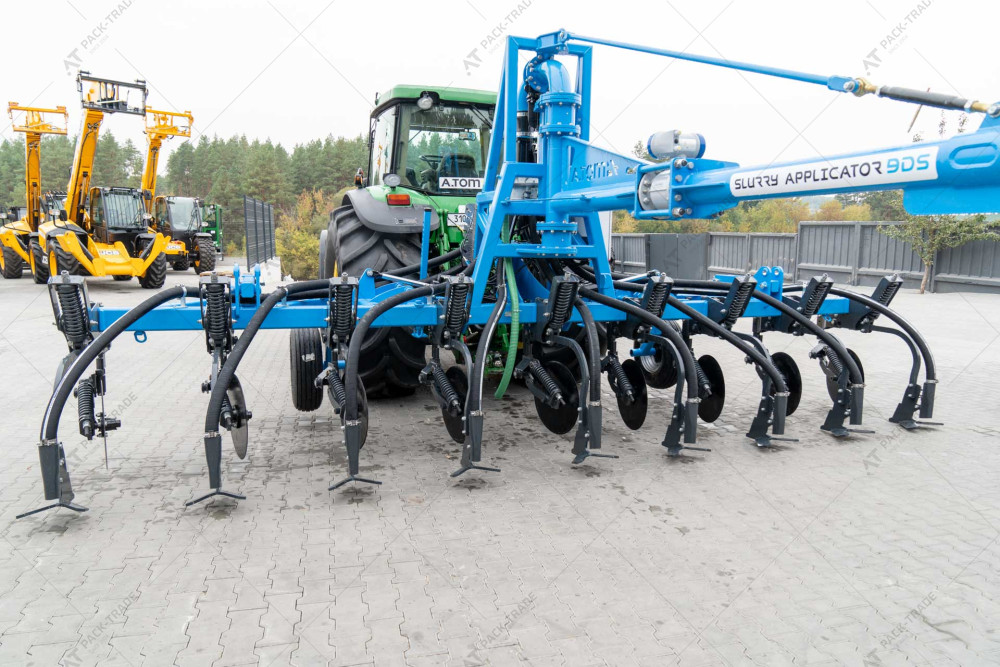

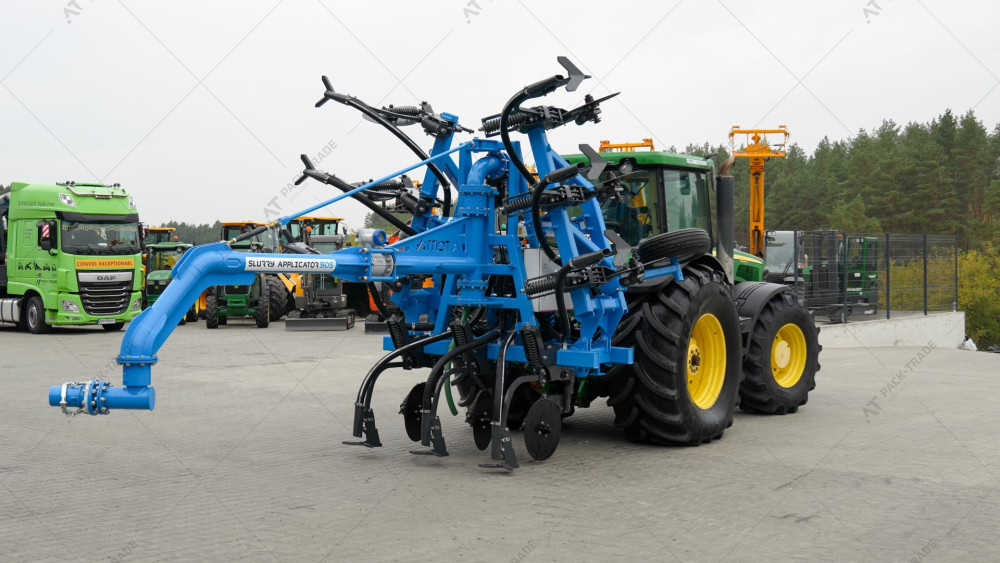

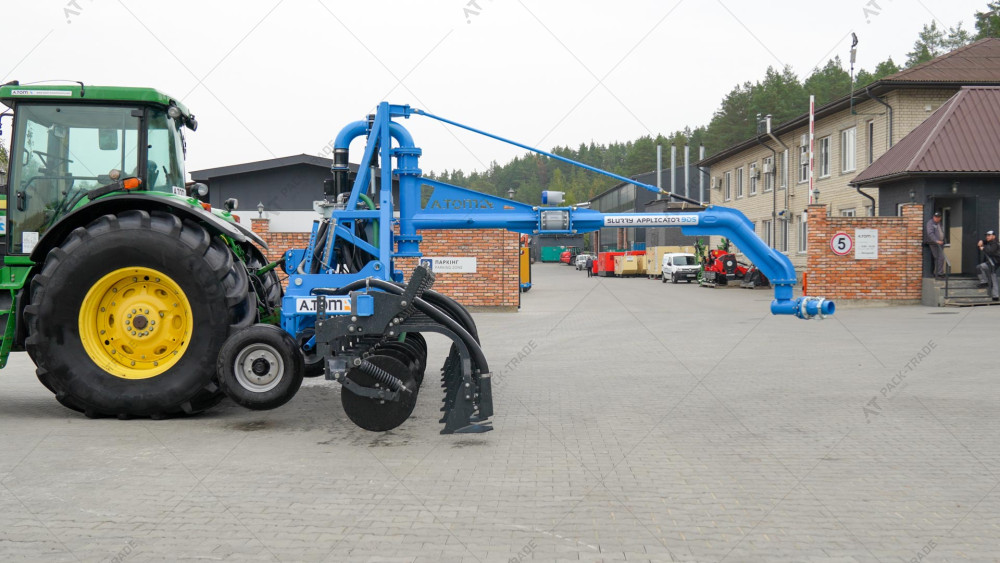

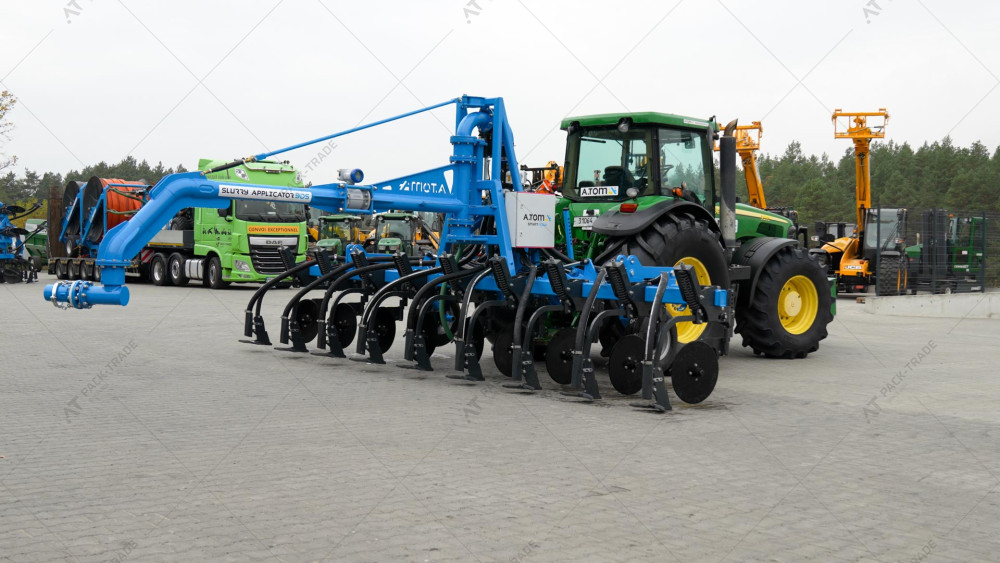

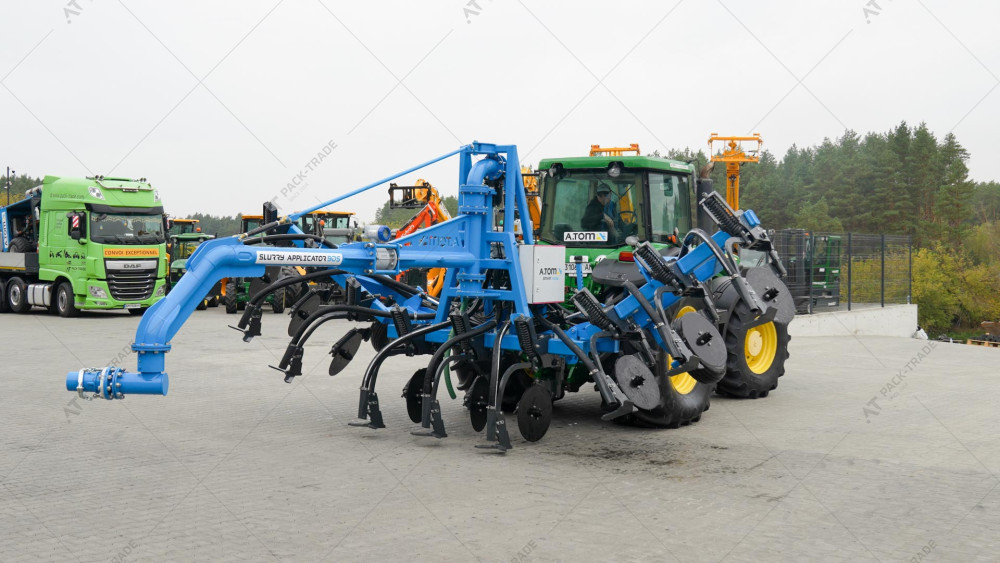

Manure (slurry) Applicator - A.TOM 9 DS «SMART FLOW»

Number: 14320

Manure (slurry) Applicator - A.TOM 9 DS «SMART FLOW»

Name: Manure (slurry) Applicator - A.TOM 9 DS «SMART FLOW»
Brand: a_tom
SKU: 14320
Price: 129000 EUR
Availability: InStock

Order in advance

Bestseller

Price with VAT

6,746,700 UAH 129,000 €

Order

Expected on stock: 0 pc

Warehouse

Brand: A.TOM (Ukraine)

Description:

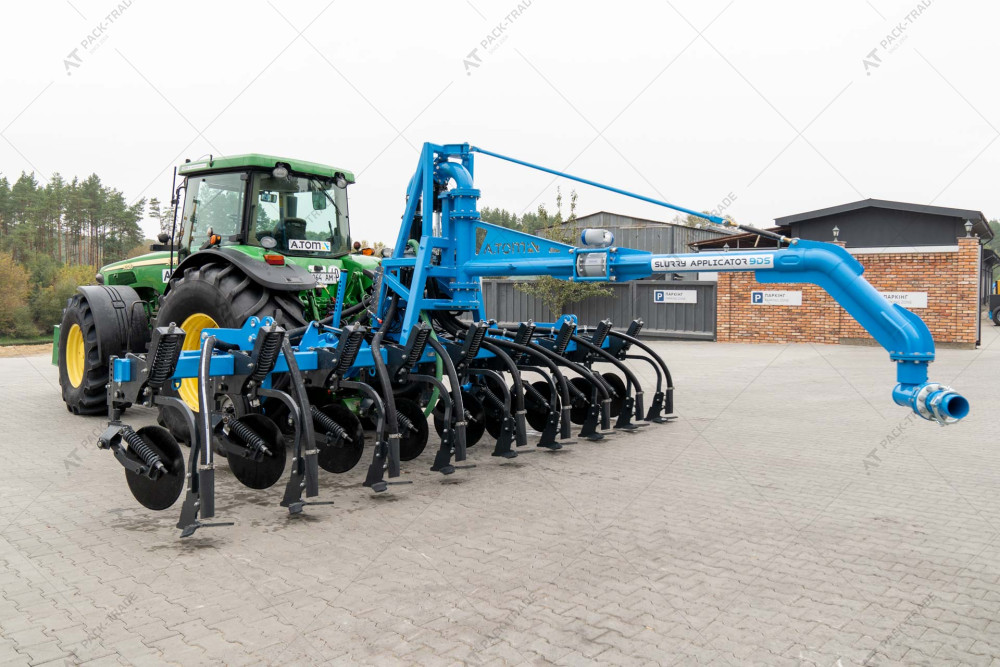

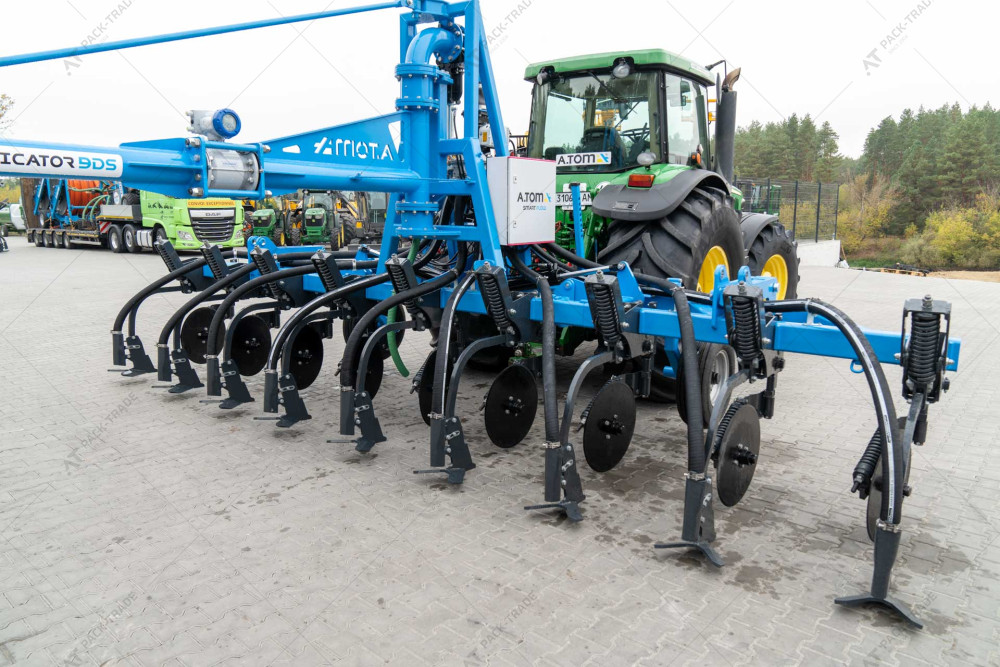

A.TOM 9 DS «SMART FLOW» has 6.55 m operation width and 9 working tools, including Dietrich shank, which allows to incorporate organic fertilizer to a 15 cm depth, that helps to increase fertility by penetrating to a predetermined depth and accumulating organic fertilizers in the root system of plants.

Cash payments

Card payments

Key features Manure (slurry) Applicator - A.TOM 9 DS «SMART FLOW»

Main working bodies	High-volume 12-inch arrow foot 30.5 cm wide (9 pcs.)
Cutting disc diameter (mm)	572

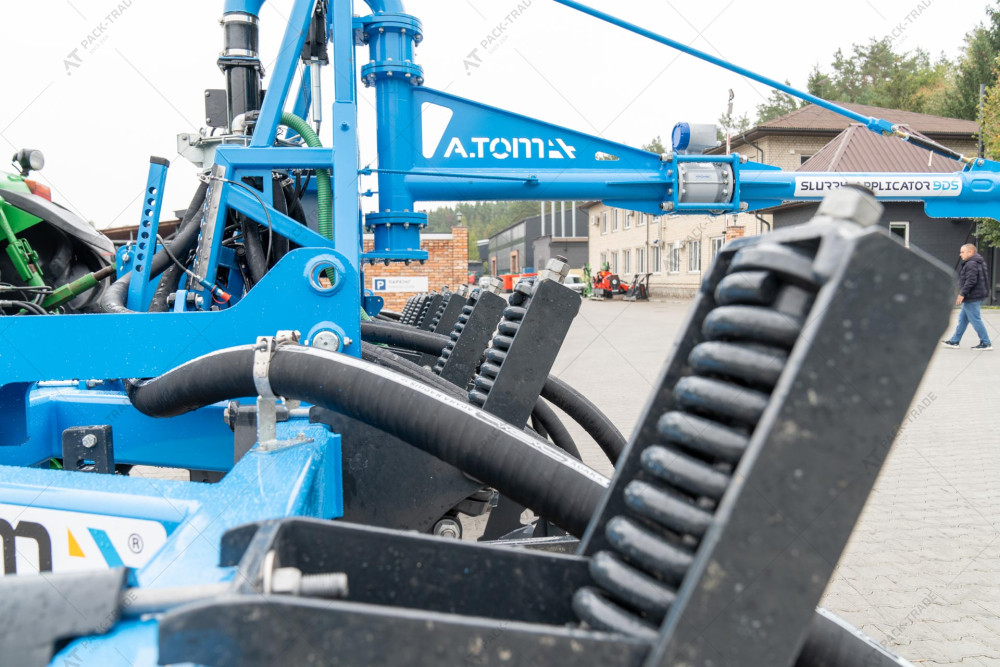

Protection of working bodies	Spring with force adjustment
Protection of cutting discs	Spring with force adjustment
Location of working bodies	Single row
Type of ramie	Double-beam, folds 180°
Aggregation type with tractor	Three-point attachment
Transport width (m)	4
Working width (m)	6,55
Number of working tools	9
The distance between the working tools (cm)	78
Recommended processing depth (cm)	10-15
Drawing force	25 hp on the rack
Type of rotary device	Double hinge
Distributor type	Compulsory
Diameter of distribution hoses (mm)	75
The number of support wheels	2
The number of supporting legs	2
Power demand (h.p.)	350
Overall weight (kg)	3300

VideoManure (slurry) Applicator - A.TOM 9 DS «SMART FLOW»

More information

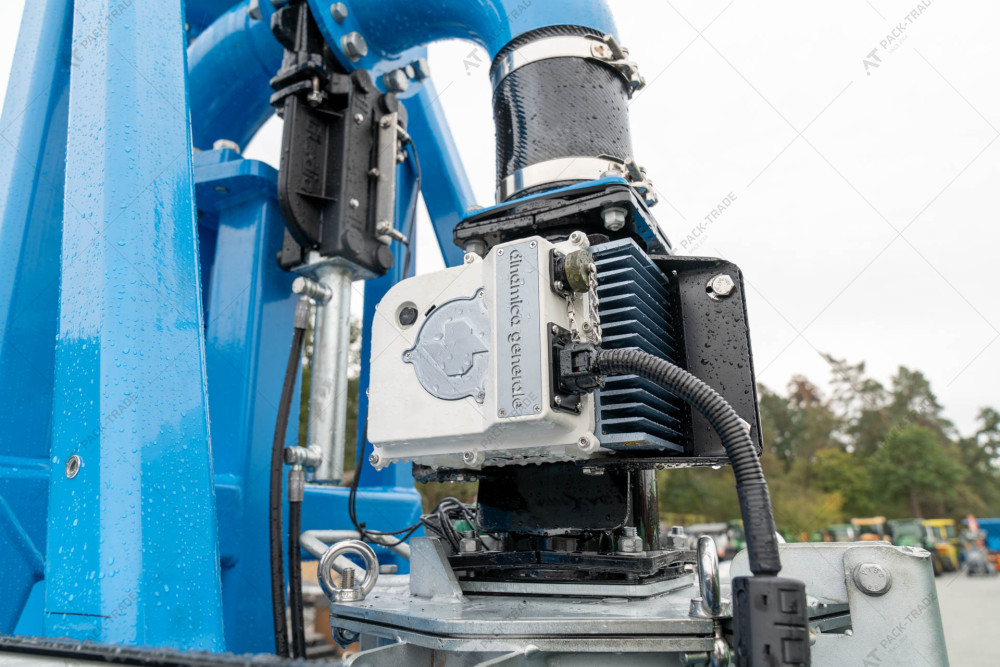

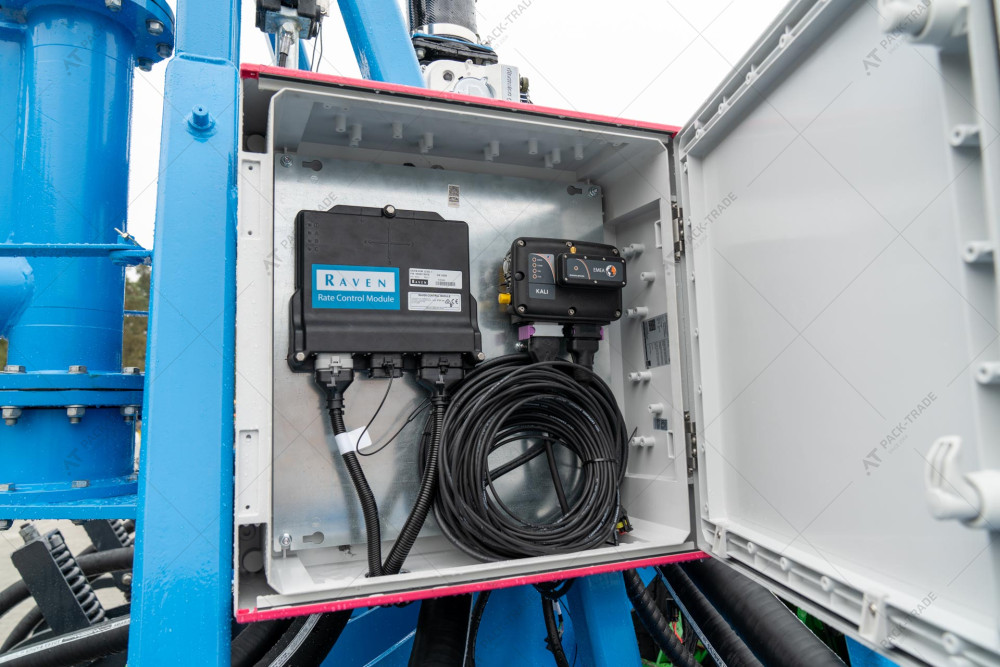

The main advantage and unique value of this applicator is the SMART FLOW system of online analysis, data collection and correction. This system consists of an NIR analyzer, a unit for receiving, processing and further transferring data via Wi-Fi to any storage medium with the appropriate application (APP) installed, or via Iso Bus to a virtual terminal.

Evo NIR 4.0 ARCHITECTURE

EVONIR 4.0 is the most versatile NIR analyzer that can be used for a variety of applications, such as in manure tanks or hose systems. Thanks to its near-infrared technology combined with artificial intelligence algorithms, it can analyze and determine the exact composition of not only crops, but also cow and pig manure and digestate from biogas plants. Manure is a valuable source of nutrients for soil fertilization and should be used wisely, depending on its NPK and ammonia concentration.

EVONIR 4.0 analyzer can determine the concentration of the following constituents in the slurry:

Dry matter (DM)
Total nitrogen (N total)
Ammonia (NH4)
Phosphorus (P2 O5 )
Potassium (K2 O)

Based on Flowmeter data and NIR values ManureXControl ECU can determine optimal tractor speed or adjust the flow acting on slurry tanker pump: VARIABLE RATE. The options (tractor speed/flow adjustment) depends on the slurry tanker model (in case of drag-hose injectors the only option available is the tractor speed).

EvoNIR 4.0 + Virtual Terminal + Flow Meter _Variable Rate Solution

EvoNIR 4.0 + Virtual Terminal + Flow meter

Data that can be visualized on a virtual terminal :

Info general: Customer, farm, field, component (cow slurry, pig slurry, digestate).
Real time NIR analysis for the following parameters: DM, Ntotal, P205, K2O, NH4.
GPA: gallons/liter per acre/hectare (real time SPREAD FACTOR). This value it is not linked to the concentration of slurry nutrients.
TOTAL SP: total number of gallons/liters spreaded since the driver pressed PLAY button to start analyzing.
Real time mapping of DM if the VT has task controller.

1. Robust design

The operating conditions of the manure applicator require sufficient durability and robust design. Applicator body is made of high quality structural steel grade S355 J2 and powder polymer coating as it works in an aggressive environment.

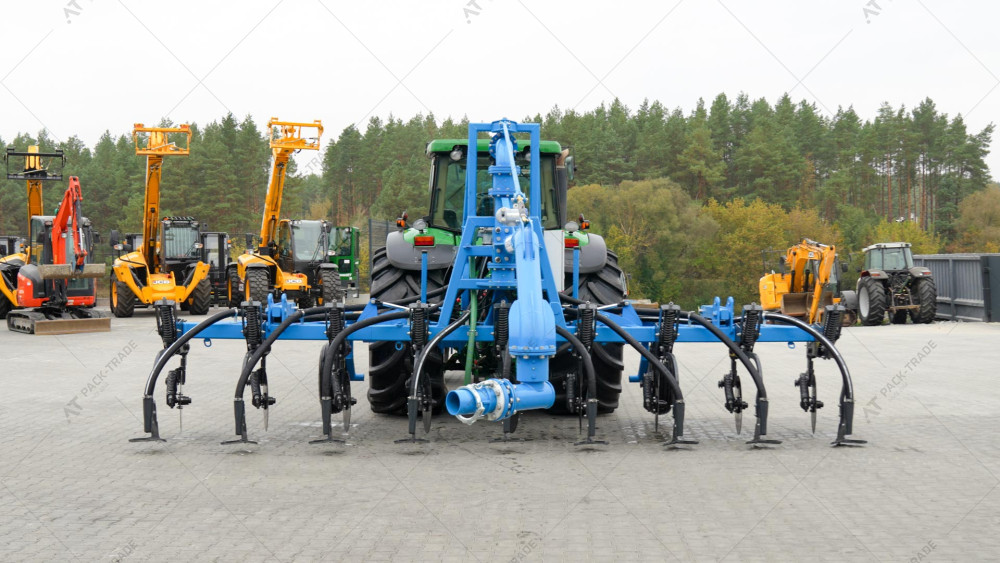

2. Folding frame

One of the distinctive features of this applicator is folding frame, which provides mobility and convenience during transportation. The applicator's structure has a dual frame that folds and unfolds for easy transportation. The beam cross-section is 150 mm x 100 mm, with a thickness of 8 mm.

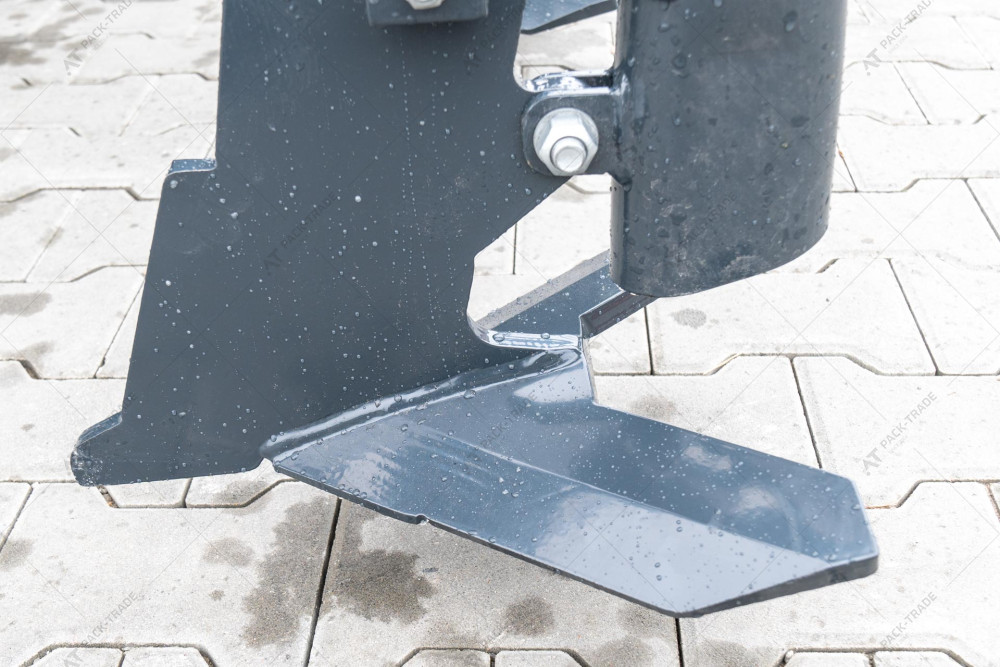

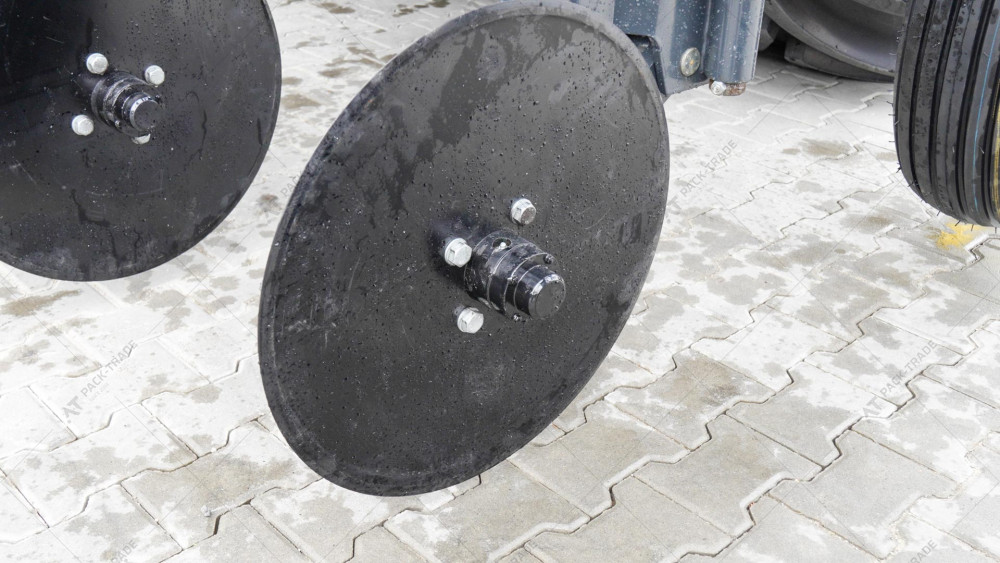

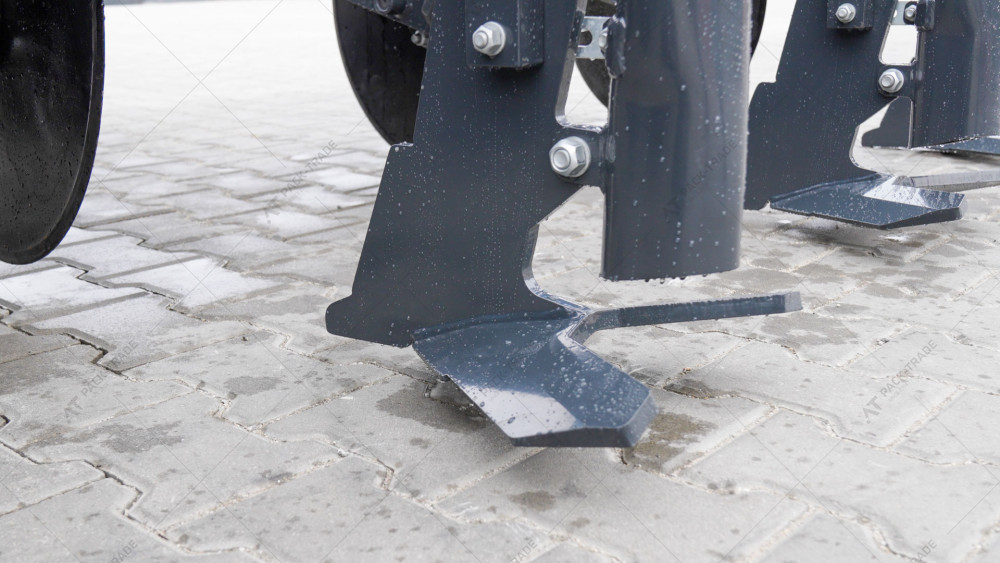

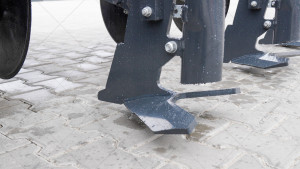

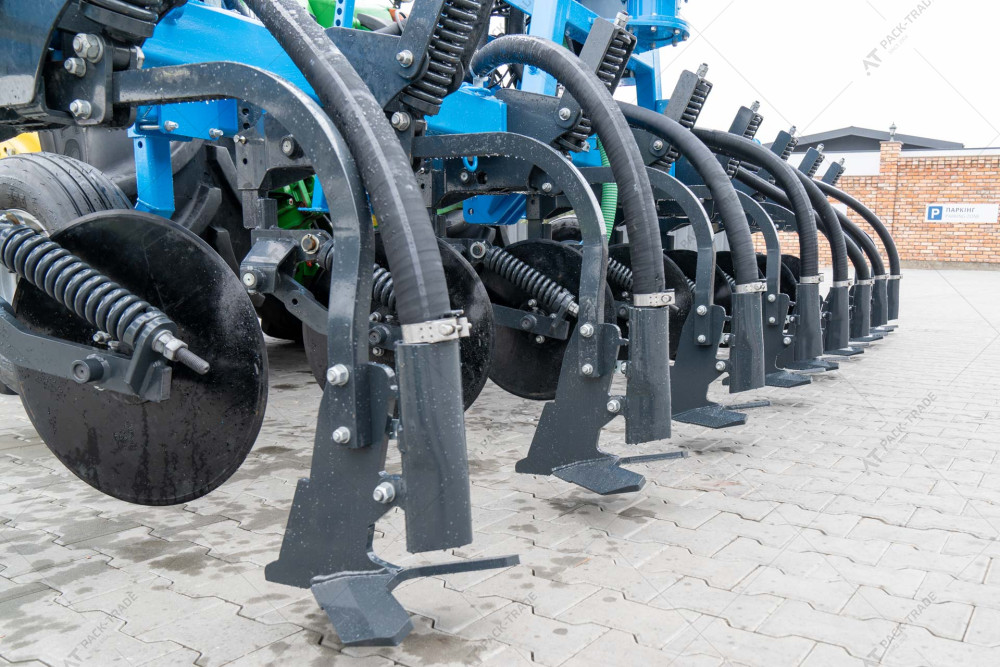

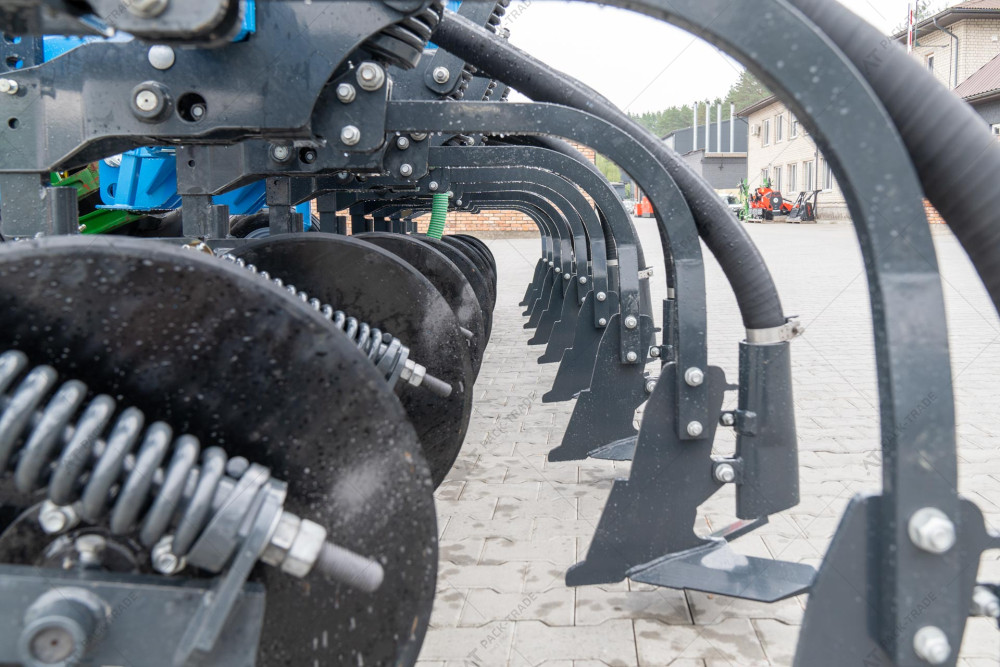

3. Working body with a cutting disk – Dietrich coulter (USA)

4. Stabilizing supports

Metal stabilizing supports, which are folded and unfolded, are fixed vertically with a lock pin in the unfolded position. They raise the applicator and keep it at a certain height for aggregation with the tractor. After the end of work, they fix the applicator in a stable position.

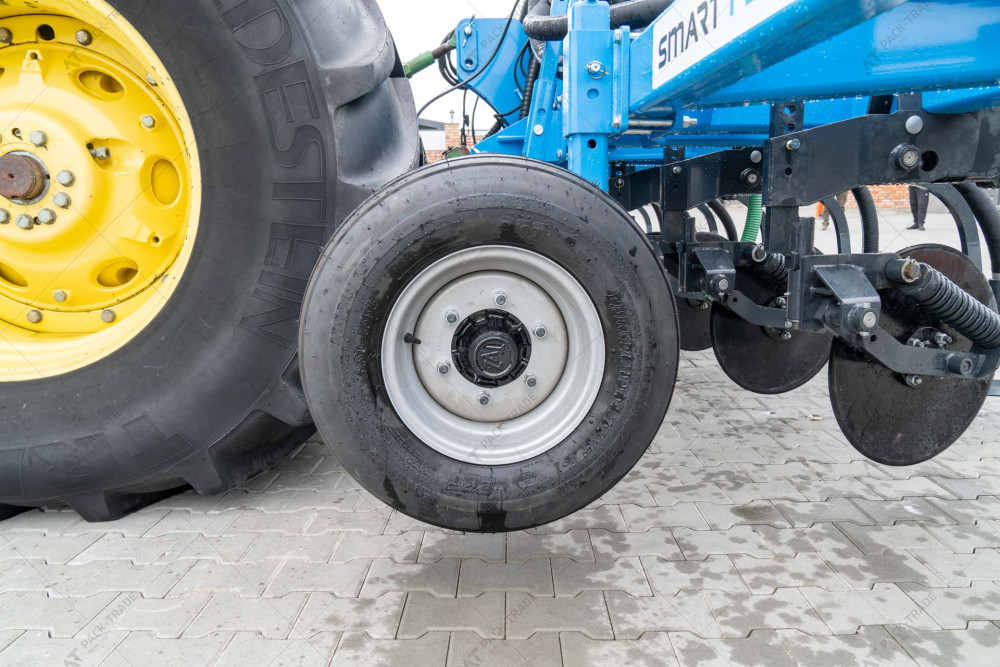

5. Support wheels

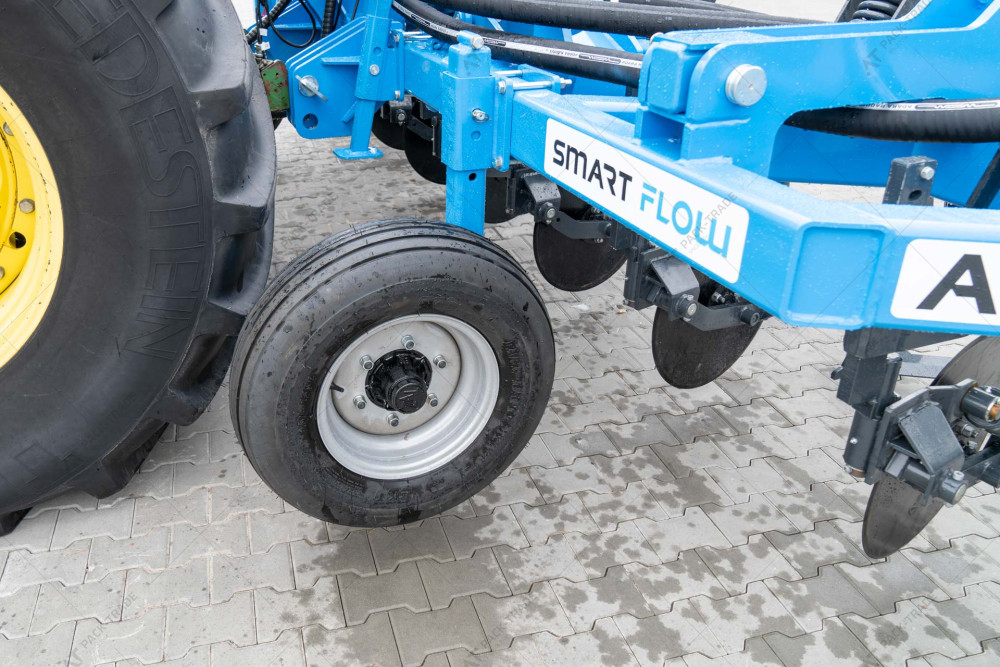

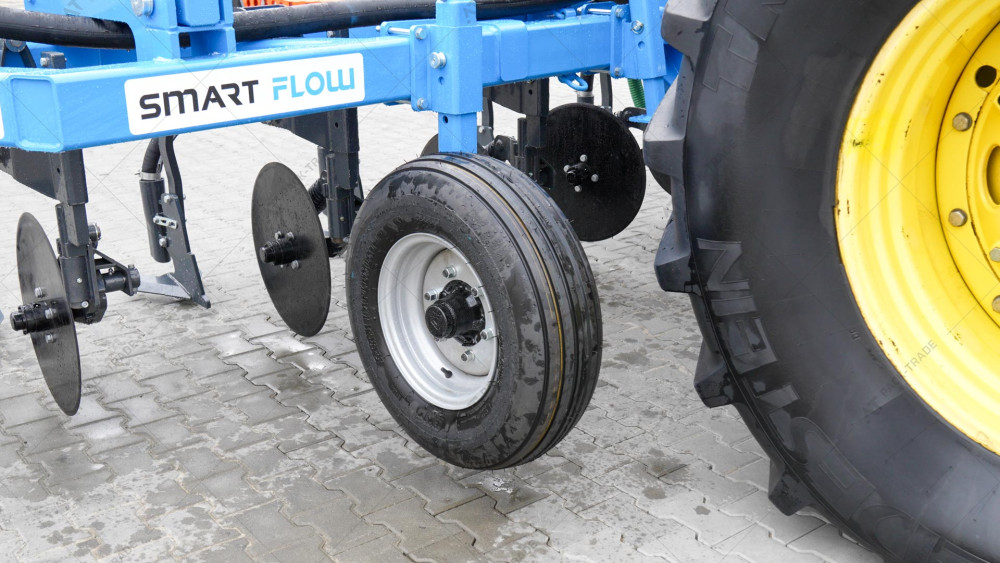

They are used to maintain the set working depth and to perfectly follow the terrain.

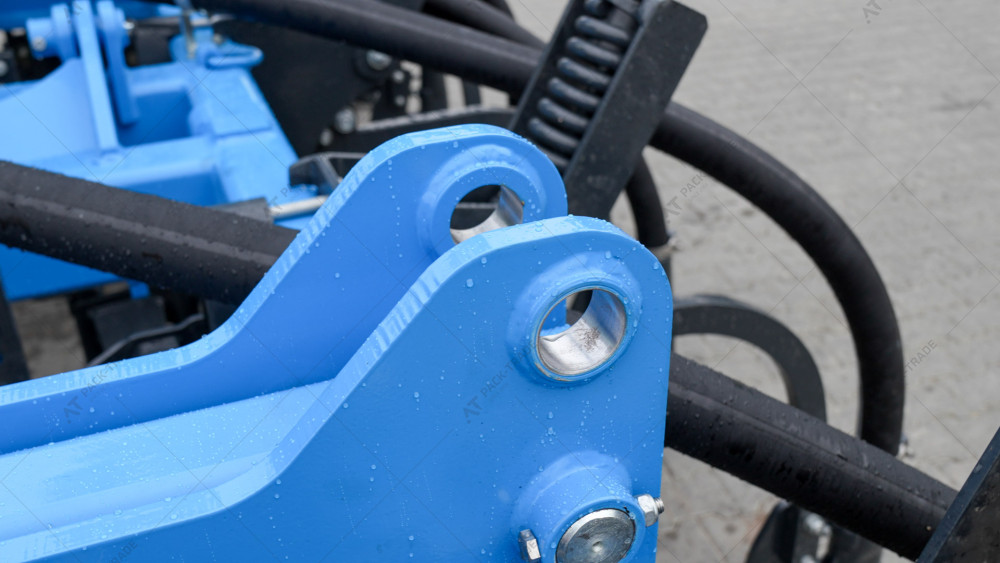

6. Mounting loops

For the convenient loading and unloading, the applicator is equipped with mounting loops.

7. Type of aggregation with a tractor

The applicator has a three-point hitch for tractors of categories 3 and 4.

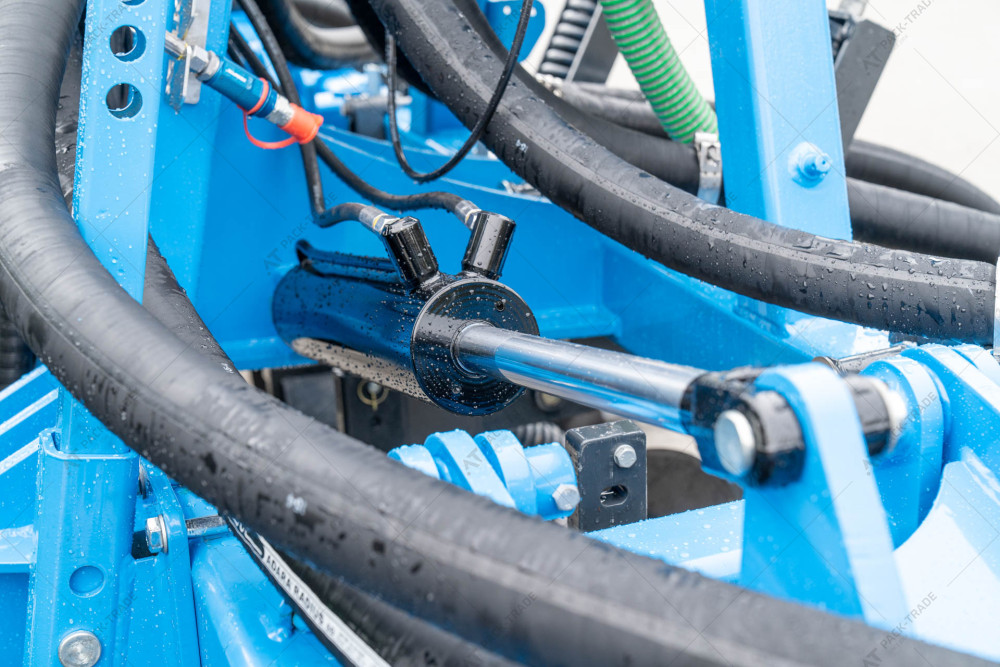

8. Powerful hydraulic cylinders

Powerful hydraulic cylinders with a strong rod are used for folding and unfolding the frame wings.

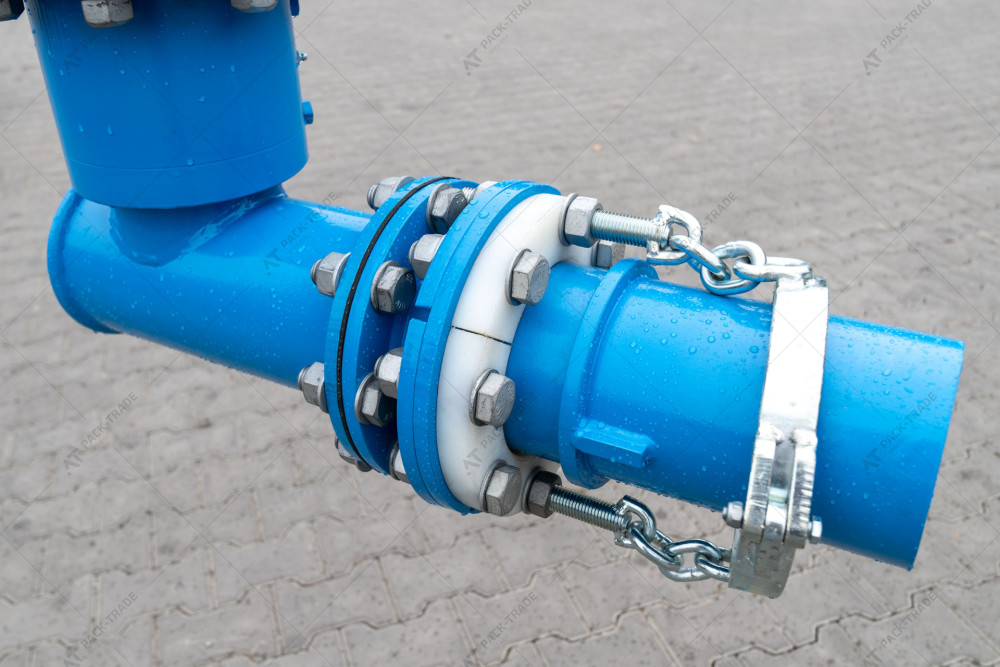

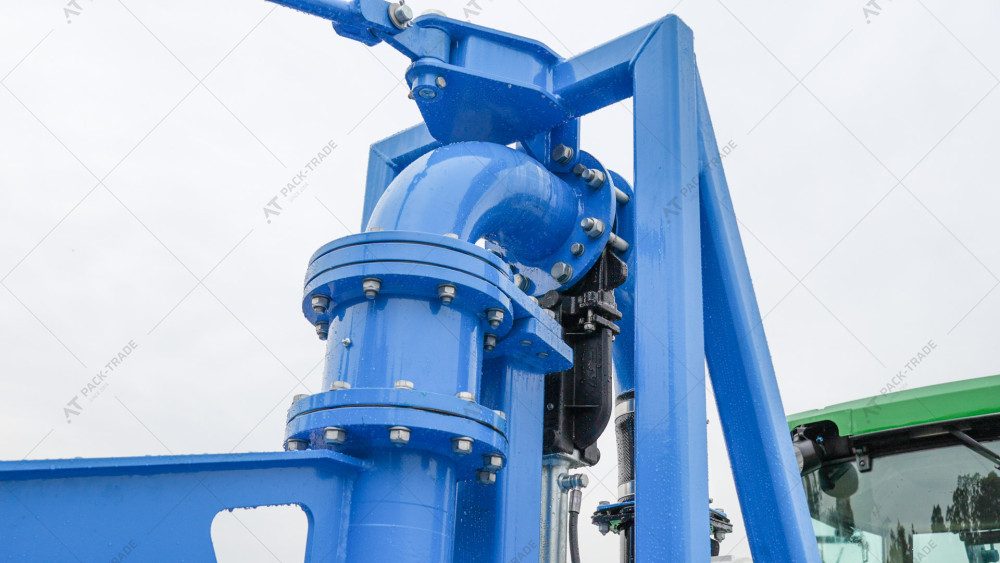

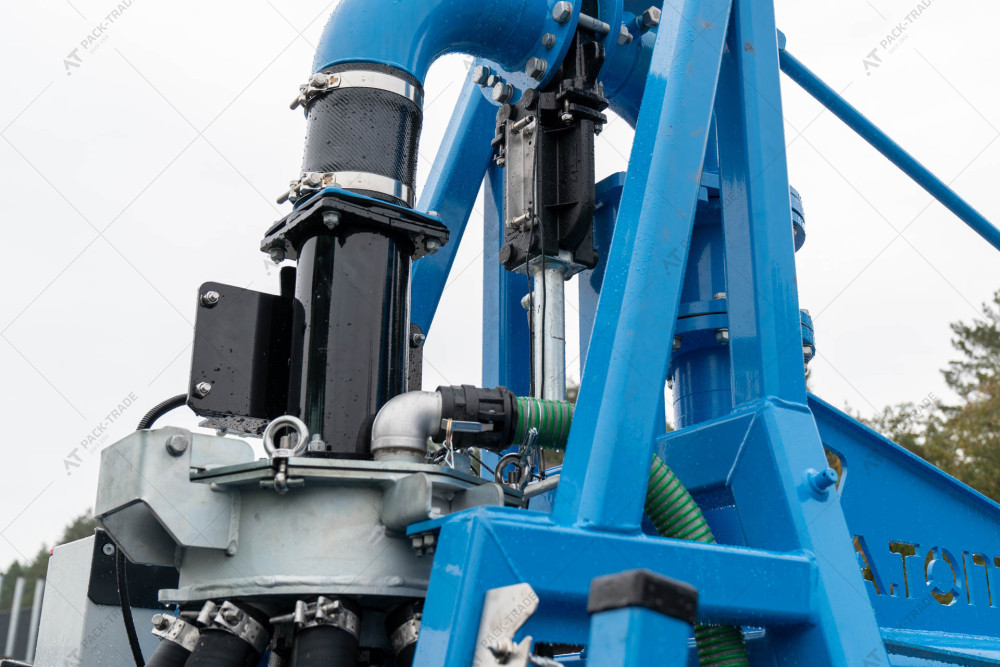

9. Turning pipe

A robust 152 mm reinforced turning pipe, rotates around a vertical axis.

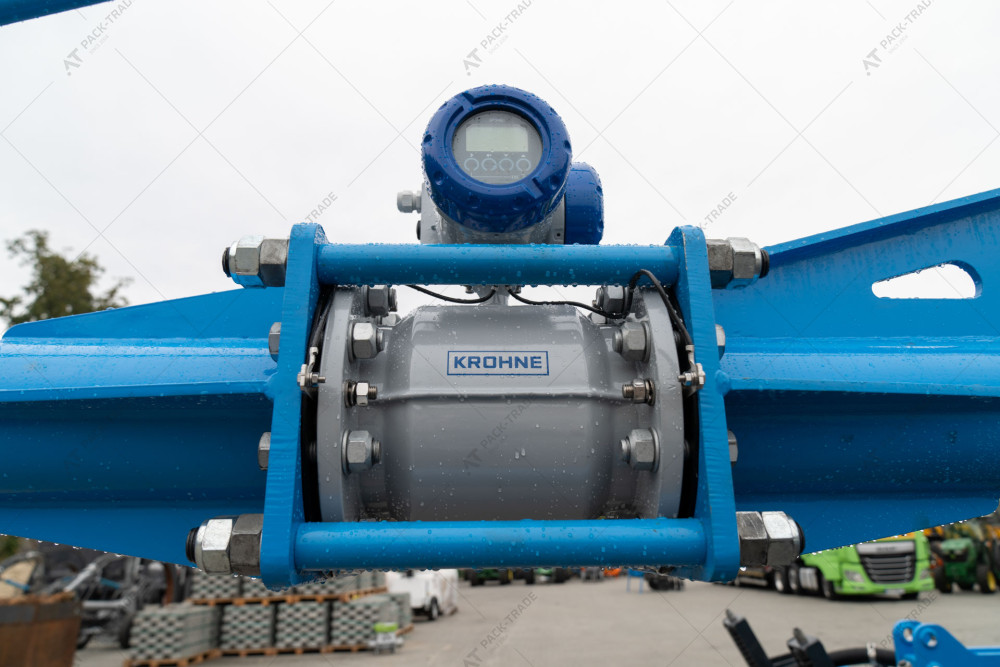

10. Krohne flow meter (Germany)

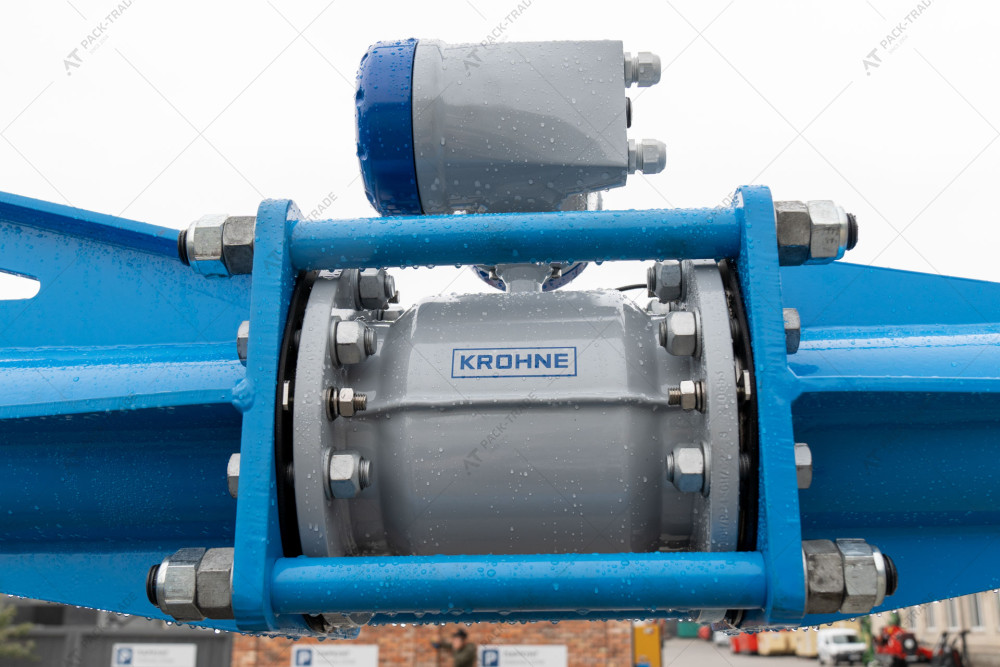

A high-performance electromagnetic flow meter Optiflux 2300 from one of the world's best manufacturers of equipment for applications requiring high measurement accuracy - the German company Krohne. It is used to measure the flow of the material being supplied . The flowmeter is mounted in a rotary pipe and secured with reinforced studs.

11. Support rod

To support the weight and stabilize the rotating pipe.

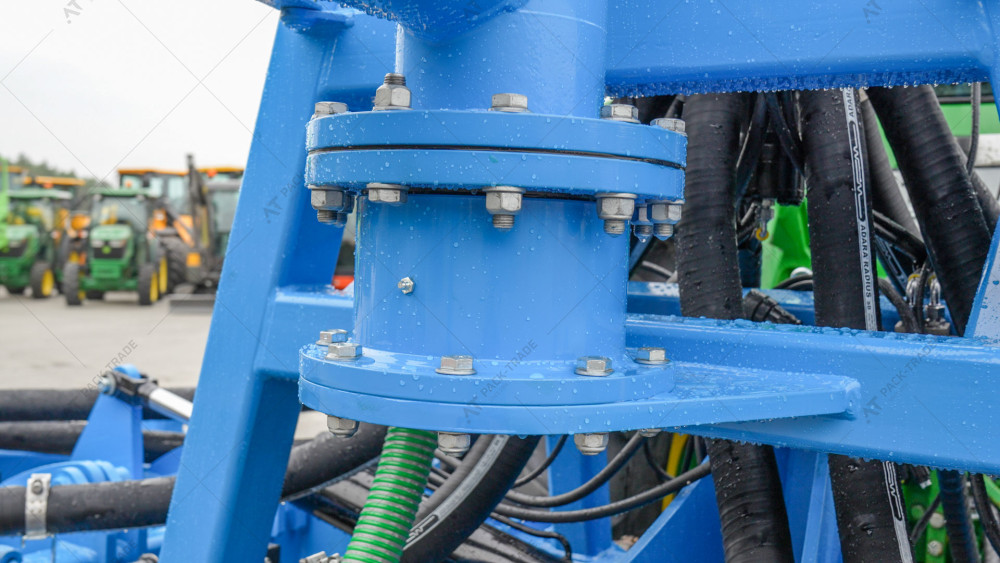

12. Double swivel mechanism

One of the unique elements of the applicator is the articulated hose with a double swivel mechanism. This device protects the hose from damage when the tractor turns and prevents the hose with pressurized liquid from twisting.

13. Grease points

Seals and bearings require periodic lubrication at certain intervals, the applicator's design includes conveniently placed grease points. For lubrication, we use SAE universal grease with extreme properties (EP), in particular, Nils Nilex EP 2 grease (Italy).

14. Guillotine slide valve with O-ring “R.I.V.” (Italy)

Guillotine slide valve is hydraulically closed to block the flow of liquid when the tractor is turning at the edges of the fields, which prevents excessive amounts of organic fertilizer from spilling out.

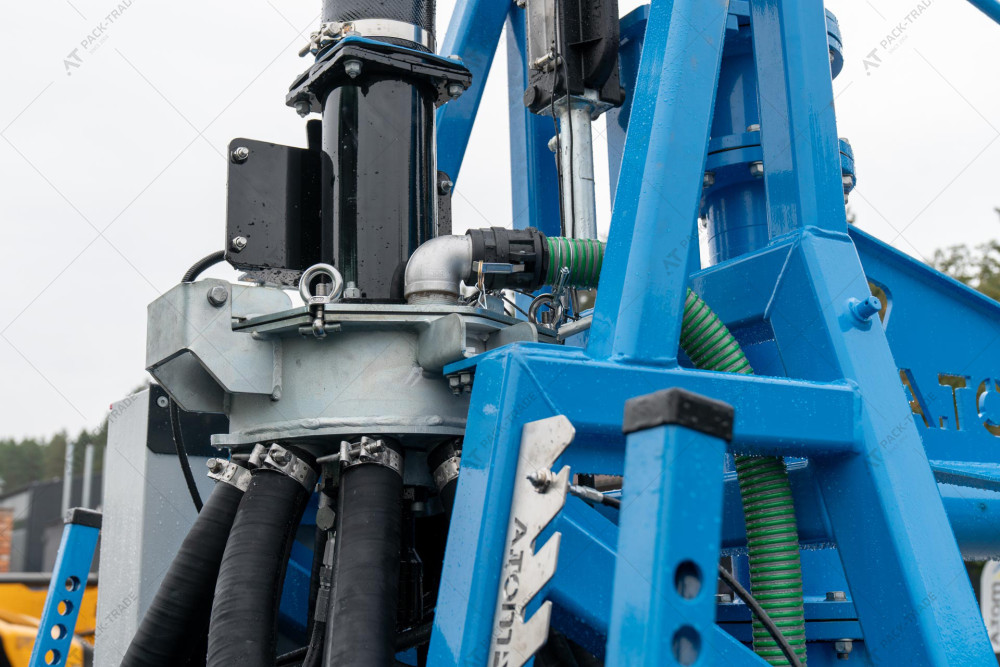

15. Forced liquid flow distributor “Vogelsang” (Germany)

The distribution of manure between the working bodies is carried out through a liquid flow distributor with 7 outlets with a diameter of 75 mm. The distributor is powered by a hydraulic motor.

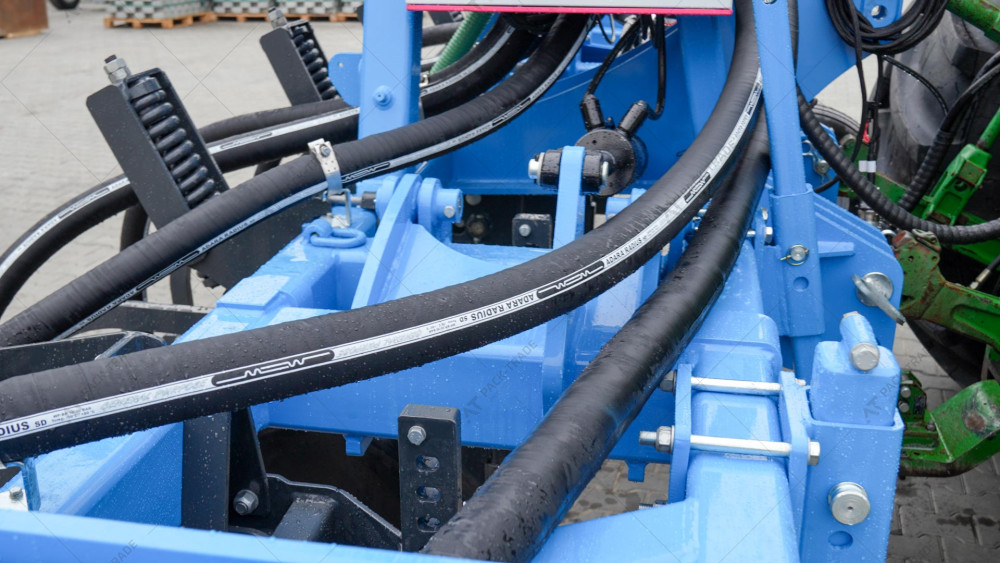

16. Pressure distribution hoses “ADARA”

From the flow distributor, the liquid is delivered to the working tools through distribution hoses with a diameter of 75 mm, designed for a pressure of up to 10 Bar. We use "Adara" pressure distribution hoses from one of the best European hose manufacturers –“BrinkoflexGmbh” (Germany).
