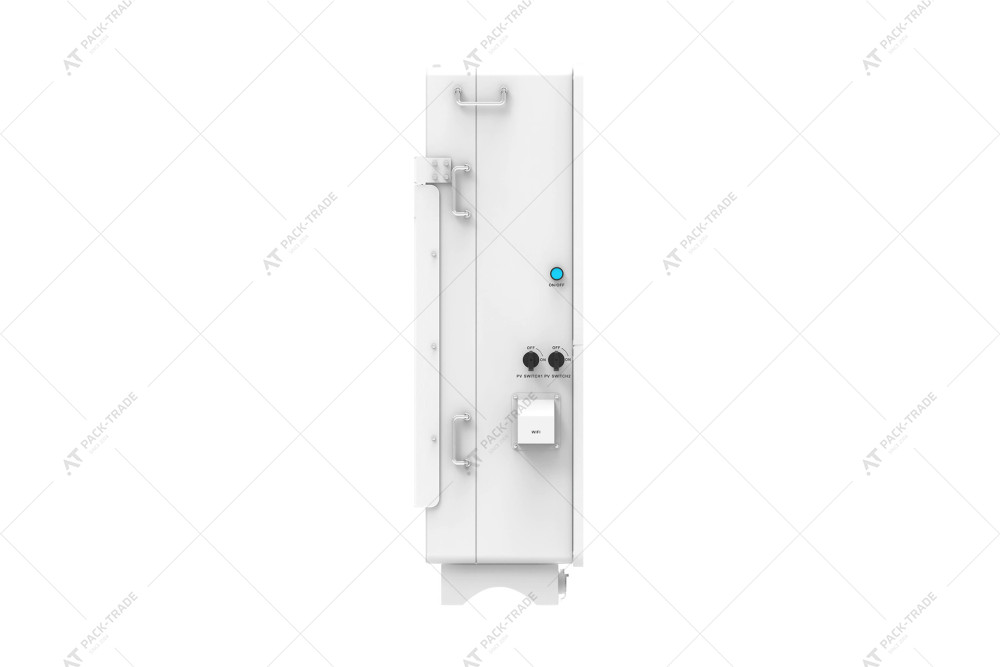

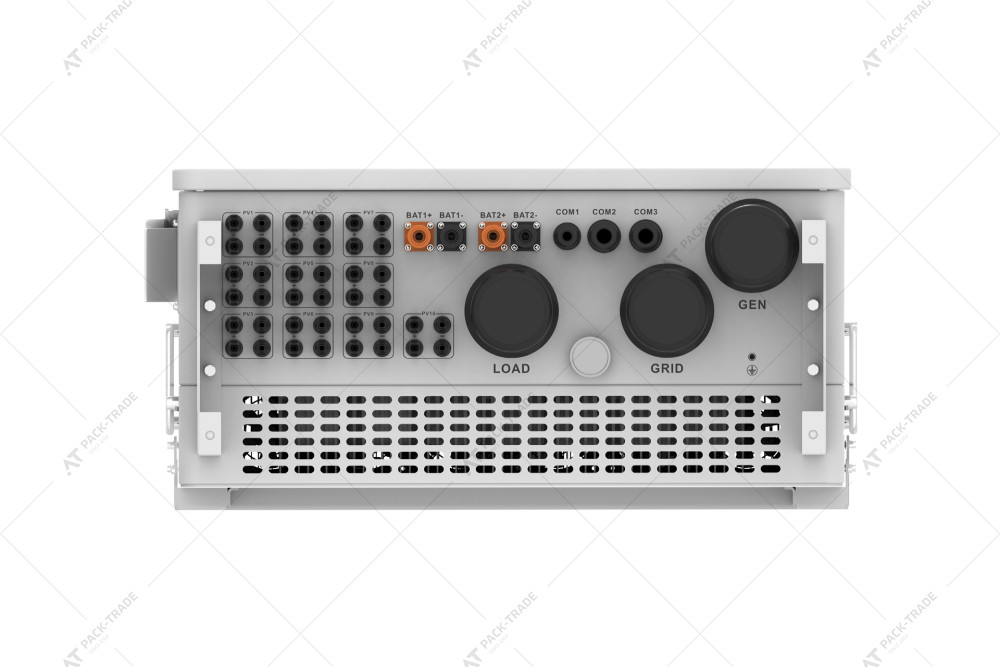

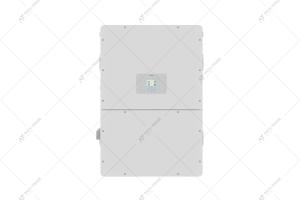

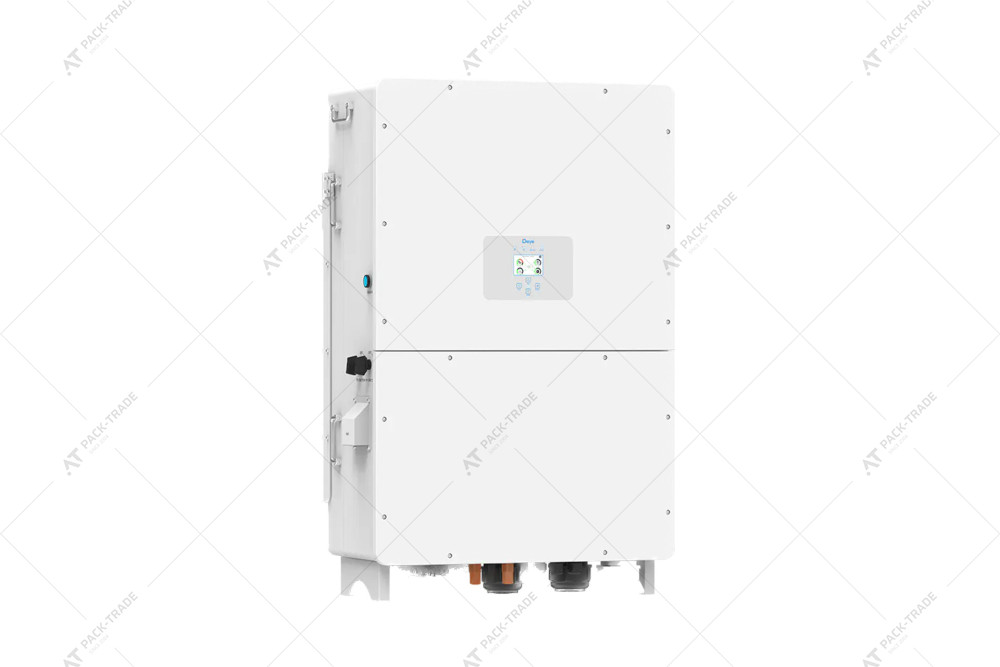

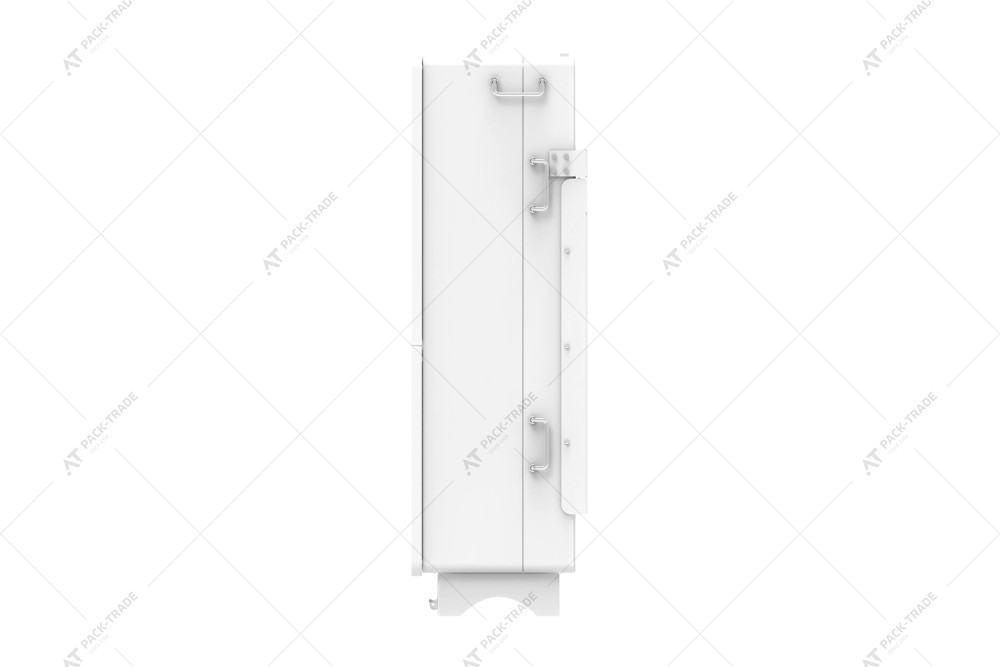

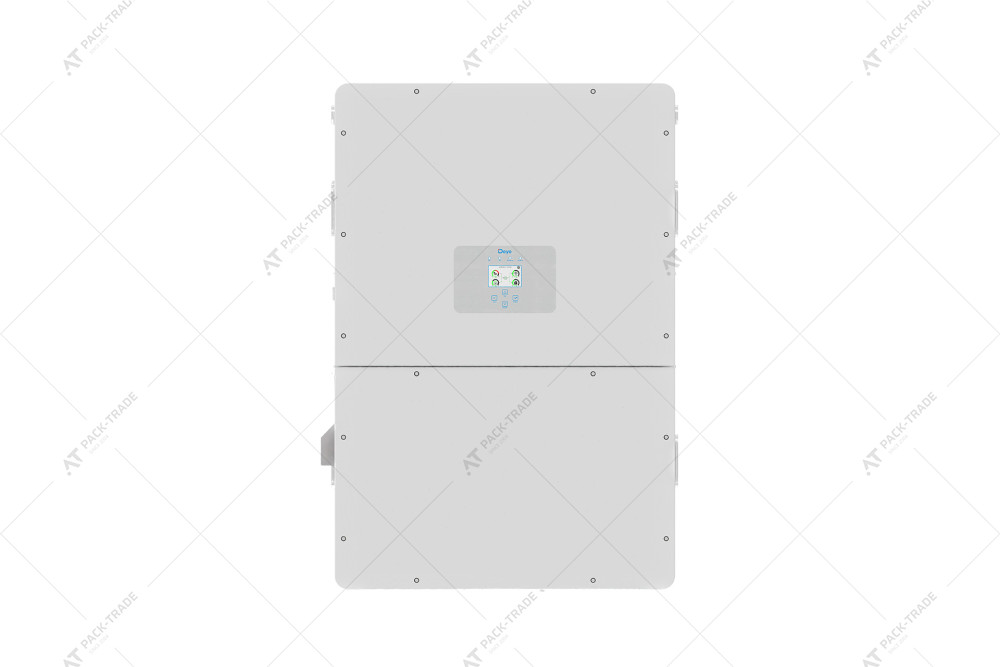

DEYE SUN-125K-SG02HP3-EU-GM10 Hybrid Inverter

Name: DEYE SUN-125K-SG02HP3-EU-GM10 Hybrid Inverter
Brand: deye
SKU: 20222
Price: 393500 UAH
Availability: InStock

Price with VAT

393,500 UAH

Order Now

Request a Callback

Brand: DEYE

Description:

Hybrid Inverter Deye SUN-125K-SG02HP3-EU-GM10 is a three-phase, high-voltage 125 kW inverter designed for commercial and industrial solar power plants. It supports solar panel arrays with a capacity of up to 200 kW, high-voltage batteries ranging from 160 to 850 V, and features 10 MPPT trackers for efficient solar energy utilization. The inverter delivers a pure sine wave, supports 100% unbalanced load, and provides an output voltage of 220/380 V or 230/400 V at a frequency of 50/60 Hz.

Cash Payment

Bank Transfer

Key features DEYE SUN-125K-SG02HP3-EU-GM10 Hybrid Inverter

Model	SUN-125K-SG02HP3-EU-GM10
Number of phases	3
Nominal AC Active Power at Input/Output (W)	125000
Max. PV Input Power (W)	200000
MPPT Range (V)	150-850
No.of MPP Trackers	10/2+2+2+2+2+2+2+2+2+2
Battery Voltage Range (V)	160-1000
Max. Charging Current (A)	100+100
Max. Discharging Current (A)	100+100
Number of battery input	2
Max. PV Input Voltage (V)	1000
Start-up Voltage (V)	180
PV Input Current (A)	42+42+42+42+42+42+42+42+42+42
Max. Input Short-Circuit Current (A)	63+63+63+63+63+63+63+63+63+63
Rated AC Input/Output Current (A)	189.4/181.2
Manufacturer's official warranty	5 years
System	High-voltage
