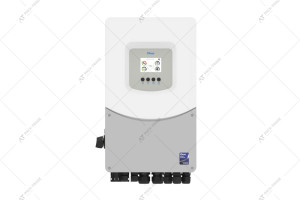

DEYE SUN-12K-SG06LP1-EU-BM3 Hybrid Inverter

Name: DEYE SUN-12K-SG06LP1-EU-BM3 Hybrid Inverter
Brand: deye
SKU: 19701
Price: 79900 UAH
Availability: InStock

Price with VAT

79,900 UAH

Order Now

Request a Callback

Brand: DEYE

Description:

DEYE SUN-12K-SG06LP1-EU-BM3 hybrid inverter is a practical solution for modern power supply systems, providing flexible management of solar energy, batteries, and backup power sources. Support for 100% unbalanced loads and up to 50% of rated power per phase ensures stable system operation. The inverter supports 48 V low-voltage batteries, charge/discharge currents up to 240 A, and features transformer-based galvanic isolation. The ability to connect up to 10 inverters in parallel allows the system to be scaled for operation in both grid-connected and off-grid modes. AC coupling is supported for retrofitting existing solar systems, parallel battery connections, and energy storage from a diesel generator.

Cash Payment

Bank Transfer

Download Catalogs

Key features DEYE SUN-12K-SG06LP1-EU-BM3 Hybrid Inverter

Model	SUN-12K-SG06LP1-EU-BM3
Number of phases	1
Nominal AC Active Power at Input/Output (W)	12000
Max. PV Input Power (W)	24000
MPPT Range (V)	150-425
No.of MPP Trackers	3/2+2+1
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	250
Max. Discharging Current (A)	250
Number of battery input	1
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
PV Input Current (A)	36+36+18
Max. Input Short-Circuit Current (A)	54+54+27
Rated AC Input/Output Current (A)	54,6/52,2
Manufacturer's official warranty	5 years
System	Low-voltage
